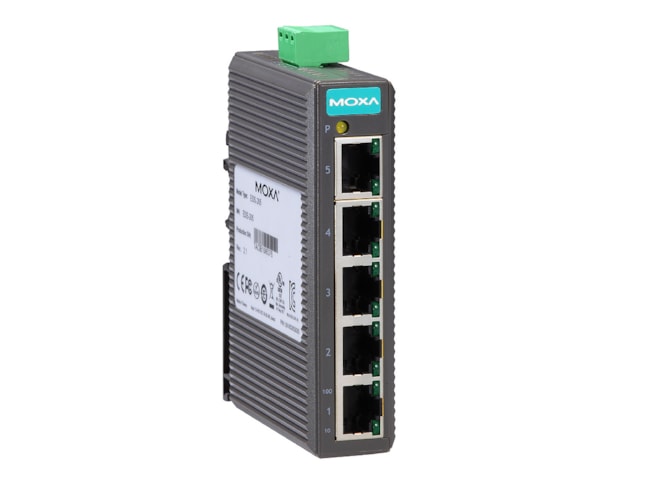

Moxa EDS-205 Unmanaged Ethernet Switch

Entry-level unmanaged Ethernet switch with 5 10/100BaseT(X) ports and plastic housing.

$100.44
Part Number
  • EDS-205
Highlights...

Features

  • 10/100BaseT (X) (RJ45connector)
  • IEEE802.3/802.3u/802.3x support
  • Broadcast storm protection
  • DIN-rail mounting ability
  • 14 to 140°F (-10 to 60°C) operating temperature range
  • 1 removable 3-contact terminal block(s) connection

The Moxa EDS-205 supports IEEE802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDIX auto-sensing RJ45 ports. The EDS-205 is rated to operate at temperatures ranging from 14 to 140°F (-10 to 60°C), and is rugged enough for any harsh industrial environment. The switches can be easily installed on a DIN-rail as well as in distribution boxes. The DIN-rail mounting capability, wide operating temperature, and the IP30 housing with LED indicators make the plug-and-play EDS-205 switches reliable and easy to use.
