Moxa EDS-G2008 Series 8-Port Unmanaged Ethernet Switch

Unmanaged full Gigabit Ethernet switch with 8 10/100/1000 BaseT(X) ports, 12/24/48 power input, IP40 housing and up to -40 to 75°C operating temperatures.

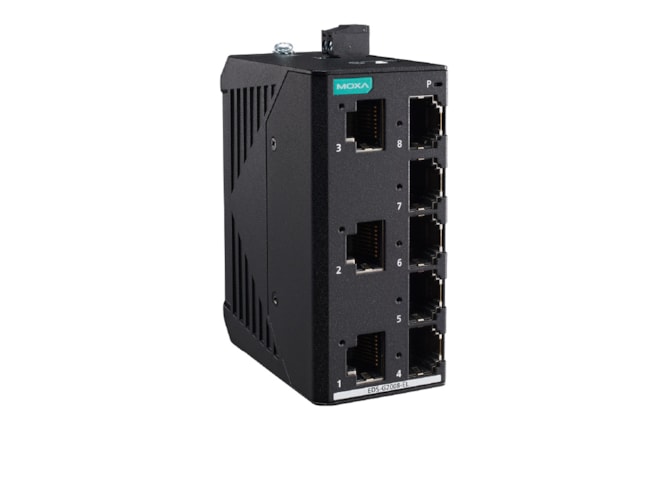

Moxa EDS-G2008-EL 8-Port Unmanaged Ethernet Switch - metal housing

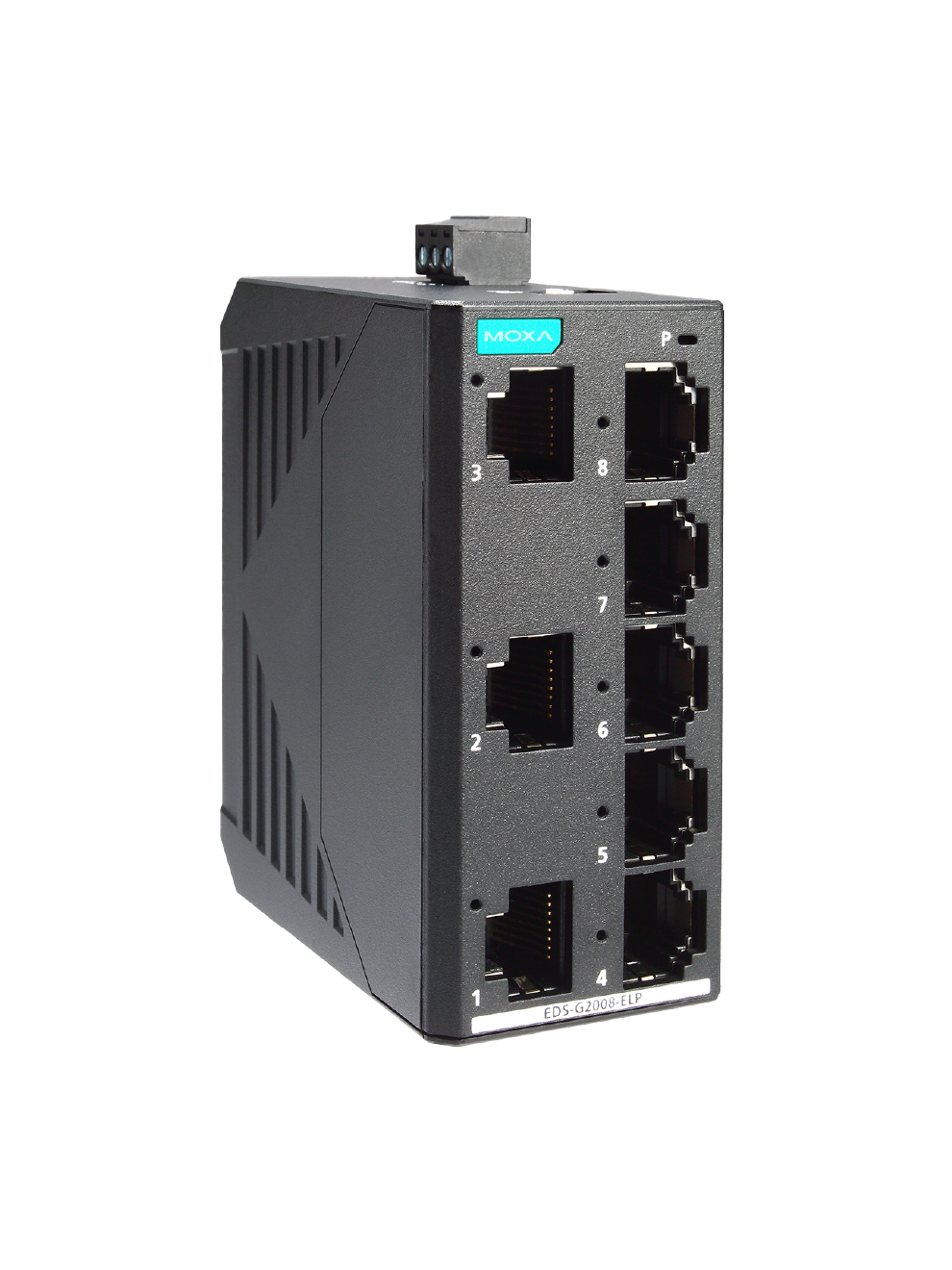

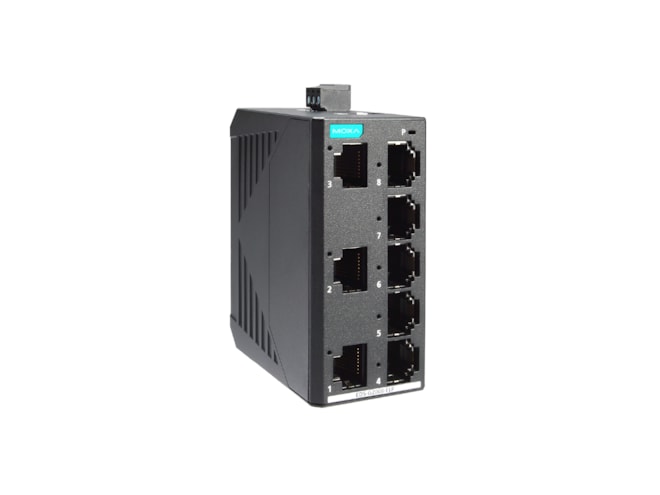

Moxa EDS-G2008-ELP 8-Port Unmanaged Ethernet Switch - plastic housing

Select your options below…

"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.

Need help? Call one of our engineers at 1-802-880-3123. We’re open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET.

Starting Price: $218.00

Selected Options: + ${{ calcAdditionalCost | formatCurrency }}

Request pricing below.

${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)

Configured Part Number: {{ calcPartNumber }}

Alternate Part Numbers: {{pn}}
{{pn}}

Request Quick Quote

Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

Highlights...

By Moxa
FREE Shipping on orders of $1,000 or more
FREE Lifetime Tech Support
Usually ships in 3-5 weeks

Features

Ethernet interface: Quality of Service (QoS), Broadcast Storm Protection (BSP)
- Ports: 8x 10/100/1000 BaseT(X) ports
- Standards: IEEE 802.3/3u/3x/3ab/1p
Operating temperature(s):
- -10 to 60°C (14 to 140°F)
- -40 to 75°C (-40 to 167°F)
IP40-rated plastic or metal housing

The Moxa EDS-G2008 Series 8-Port Unmanaged Ethernet Switch is an industrial switch with up to eight Gigabit Ethernet ports, which are ideal for applications that require simple industrial Ethernet connections. The EDS-2008 Series also allows users to enable or disable the Quality of Service (QoS) function, and broadcast storm protection (BSP) with DIP switches on the outer panel. In addition, the EDS-G2008 Series has an IP40 rated metal housing to ensure suitability for use in industrial environments.

The EDS-G2008 Series has a 12/24/48 VDC single power input, DIN-rail mounting, and high-level EMI/EMC capability. In addition to its compact size, the EDS-G2008 Series has passed a 100% burn-in test to ensure it will function reliably after it has been deployed. The EDS-G2008 Series has a standard operating temperature range of -10 to 60°C, -40 to 75°C with metal housing.
