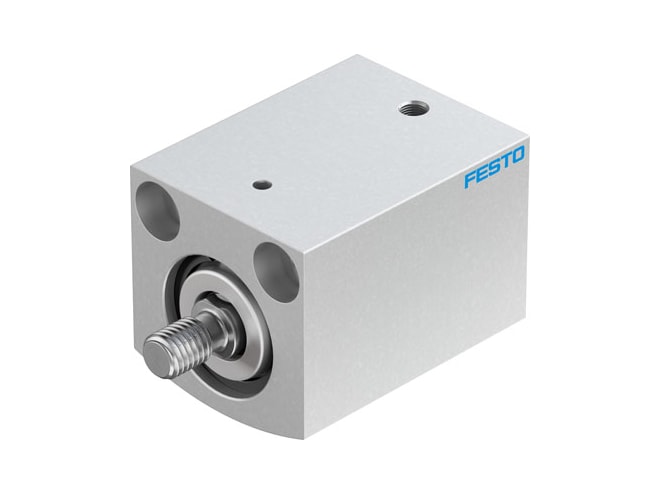

Festo AEVC-25-25-A-P Short-stroke Cylinder

Features

• 25MM stroke
• 25 mm piston diameter
• 15N spring return force with retracted piston rod
• Elastic cushioning rings/plates at both ends cushioning
• Optional mounting position
• Pushing mode of operation
• Single-acting mode of operation
• Piston design
• Piston rod design
• Without position detection
• 991730 symbol
• 0.15MPA operating pressure
• 1MPA operating pressure
• 1.5BAR operating pressure
• 10BAR operating pressure
• 21.75PSI operating pressure
• 145PSI operating pressure
• Compressed air to ISO 8573-1:2010 [7:4:4] operating medium
• Lubricated operation possible (in which case lubricated operation will always be required) note on operating and pilot medium
• 1 - Low corrosion stress corrosion resistance class cRC
• VDMA24364-B1/B2-L lABS (PWIS) conformity
• 268N theoretical force at 0.6 mPa (6 bar, 87 psi), advance stroke
• 37G moving mass
• 167G product weight
• Either: type of mounting
• With through-hole type of mounting
• With accessories type of mounting
• RoHS-compliant note on materials
• Wrought aluminium alloy material cover
• Anodised material cover
• NBR material seals
• TPE-U(PU) material seals
• Wrought aluminium alloy material housing
• Anodised material housing
• High-alloy steel material piston rod
• -20GC ambient temperature to 80GC ambient temperature
• Pneumatic connection m5
