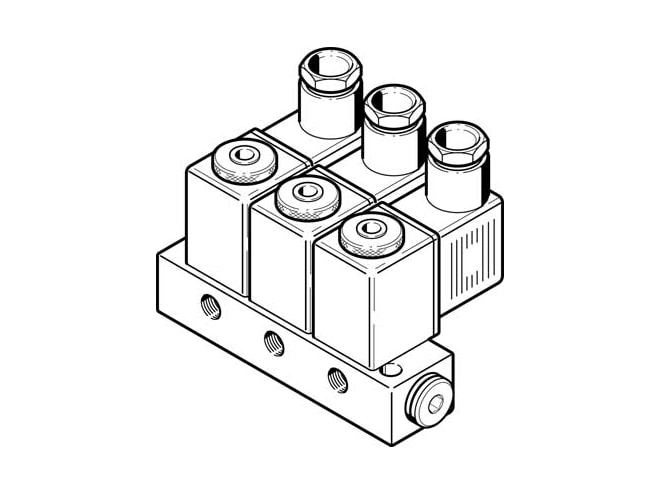

Festo BMFH-3-3-M5 Solenoid Valve

Features

• 3x3/2-way, monostable, closed valve function
• Electric type of actuation
• 50L2 standard nominal flow rate
• 0MPA operating pressure
• 0.8MPA operating pressure
• 0BAR operating pressure
• 8BAR operating pressure
• Poppet valve with spring return design
• Mechanical spring type of reset
• IP65 degree of protection
• 1.3MM nominal size
• Soft sealing principle
• 3 max. number of valve positions
• Direct type of piloting
• 991652 symbol
• 7.5W power consumption, pull
• 6W power consumption, hold
• Compressed air to ISO 8573-1:2010 [7:-:-] operating medium
• Lubricated operation possible (in which case lubricated operation will always be required) note on operating and pilot medium
• VDMA24364-B2-L lABS (PWIS) conformity
• -10GC media temperature
• 60GC media temperature
• 350G product weight
• Plugs electrical connection
• With through-hole type of mounting
• Aluminium material housing
• -5GC ambient temperature to 40GC ambient temperature
• Pneumatic connection g1/8 , port 1
• Pneumatic connection m5 , port 2
• Pneumatic connection m5 , port 3
