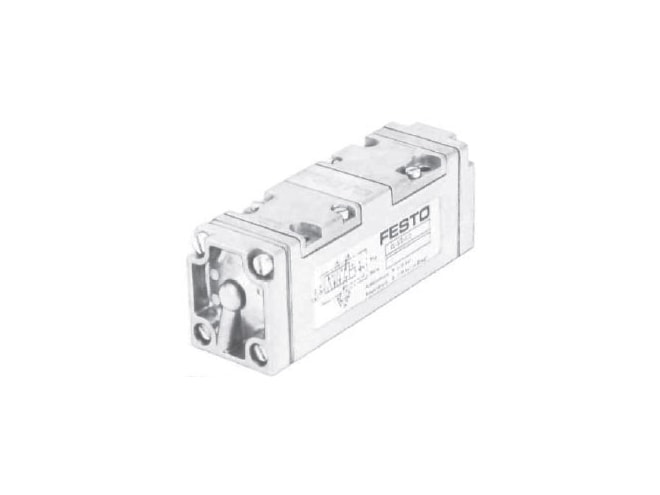

Festo CL-5/2-1/4 Pneumatic Valve

$512.56
Part Numbers
  • CL-5/2-1/4
  • 5734
Highlights...

Features

  • 5/2-way, monostable valve function
  • Pneumatic type of actuation
  • 1400L2 standard nominal flow rate
  • 6.5MM nominal size
  • Optional mounting position
  • Non-detenting manual override
  • 991048 symbol
  • 2BAR pilot pressure
  • 10BAR pilot pressure
  • 40HZ max. switching frequency
  • 28MS switching time on
  • Compressed air to ISO 8573-1:2010 [7:4:4] operating medium
  • Lubricated operation possible (in which case lubricated operation will always be required) note on operating and pilot medium
  • VDMA24364 zone III lABS (PWIS) conformity
  • -10GC media temperature
  • 60GC media temperature
  • On sub-base type of mounting
  • G1/8 pilot air port 12
  • G1/8 pilot air port 14
  • NBR material seals
  • Wrought aluminium alloy material housing
  • PUR material membrane
  • 1BAR to 10BAR operating pressure
  • Pneumatic connection g1/4 , port 1
  • Pneumatic connection g1/4 , port 2
  • Pneumatic connection g1/4 , port 3
  • Pneumatic connection g1/4 , port 4
  • Pneumatic connection g1/4 , port 5
