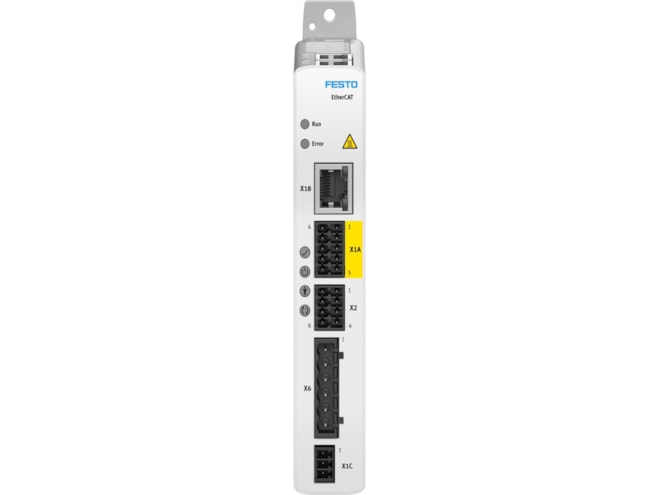

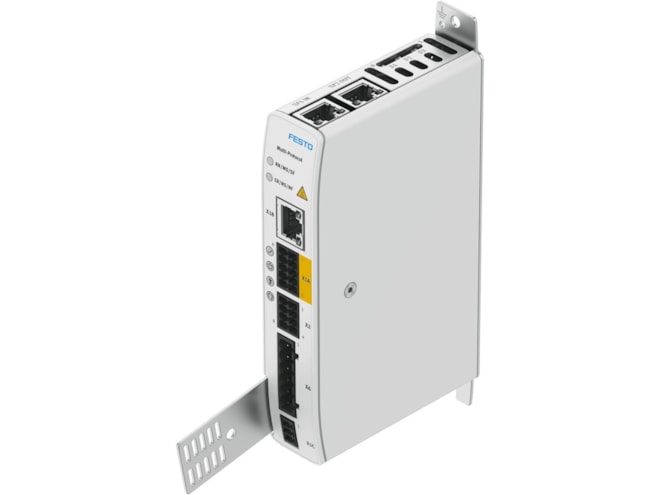

Festo CMMT-ST-C8-1C-MP-S0 Servo Drive

Space-optimized servo drive for operating stepper motors and brushless DC motors.

$714.25
Part Numbers
  • CMMT-ST-C8-1C-MP-S0
  • 8163946
Highlights...

Features

  • 24 to 48VDC primary voltage
  • 8A (peak 20A) motor current
  • Integrated safety functions STO
  • Fieldbus interface, protocol:
    • EtherCAT, EtherNet/IP, PROFINET IRT
  • Fieldbus coupling:
    • EtherCAT, EtherNet/IP, Modbus/TCP, PROFINET
  • 50% more compact than the smallest CMMT-AS
  • Point-to-point, interpolating movements, and precise positioning are possible.
  • LABS (PWIS) conformity: VDMA24364 zone III
  • IP20 protection rating
  • RoHS-compliant

The Festo CMMT-ST-C8-1C-MP-S0 Servo Drive is a highly efficient and dynamic unit designed to perform positioning and movement tasks up to 300W. This drive has a Stepper motor ST, 8A nominal current, and 4 - 48VDC voltage. This drive is a multiprotocol variant that features direct fieldbus integration for controllers from the major manufacturers. The auto-tuning of the CMMT-ST supports easy commissioning of rotary and linear motion using mechanical systems from Festo and third-party suppliers.
