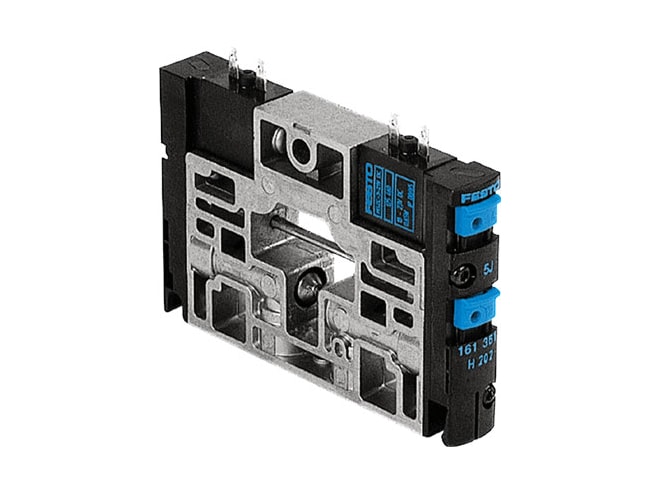

Festo CPV14-M1H-2OLS-2GLS-1/8 Solenoid Valve

Size 14 2x2/2-way valve, 1x normally closed, 1x normally open solenoid valve. Pneumatic spring reset method and G1/8 pneumatic connection. Additional functions: Not included. . View other configurations.

$216.60
Part Numbers
  • CPV14-M1H-2OLS-2GLS-1/8
  • 187846
Highlights...

Features

  • 2x2/2-way, open/closed, monostable valve function
  • Electric type of actuation
  • 14MM valve size
  • 800L2 standard nominal flow rate
  • -0.09MPA operating pressure
  • 1MPA operating pressure
  • -0.9BAR operating pressure
  • 10BAR operating pressure
  • Piston gate valve design
  • Pneumatic spring type of reset
  • IP65 degree of protection
  • 6MM nominal size
  • Without flow control option exhaust-air function
  • Soft sealing principle
  • Optional mounting position
  • Detenting manual override
  • Non-detenting manual override
  • Pilot actuated type of piloting
  • External pilot air supply
  • Internal pilot air supply
  • Non-reversible flow direction
  • 991802 symbol
  • Overlap lap
  • 0.3MPA pilot pressure
  • 0.8MPA pilot pressure
  • 3BAR pilot pressure
  • 8BAR pilot pressure
  • 0.37 b value
  • 3.2LSB c value
  • 16MS switching time off
  • 13MS switching time on
  • 100% in conjunction with holding current reduction duty cycle
  • 0.65W electrical power consumption
  • 1400MIS max. positive test pulse with 0 signal
  • 400MIS max. negative test pulse with 1 signal
  • Compressed air to ISO 8573-1:2010 [7:4:4] operating medium
  • Lubricated operation possible (in which case lubricated operation will always be required) note on operating and pilot medium
  • Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 vibration resistance
  • Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 shock resistance
  • 2 - Moderate corrosion stress corrosion resistance class cRC
  • VDMA24364-B1/B2-L lABS (PWIS) conformity
  • -5GC media temperature
  • 50GC media temperature
  • 120G product weight
  • With through-hole type of mounting
  • Common line pilot air port 12/14
  • Common line pilot exhaust port 82/84
  • RoHS-compliant note on materials
  • HNBR material seals
  • NBR material seals
  • Die-cast aluminium material housing
  • Brass material housing
  • POM material housing
  • PPS material housing
  • Steel material housing
  • -5GC ambient temperature to 50GC ambient temperature
  • -20GC to 40GC storage temperature
  • Pneumatic connection common line , port 1
  • Pneumatic connection common line , port 11
  • Pneumatic connection g1/8 , port 2
  • Pneumatic connection common line 3/5 combined
  • Pneumatic connection g1/8 , port 4
