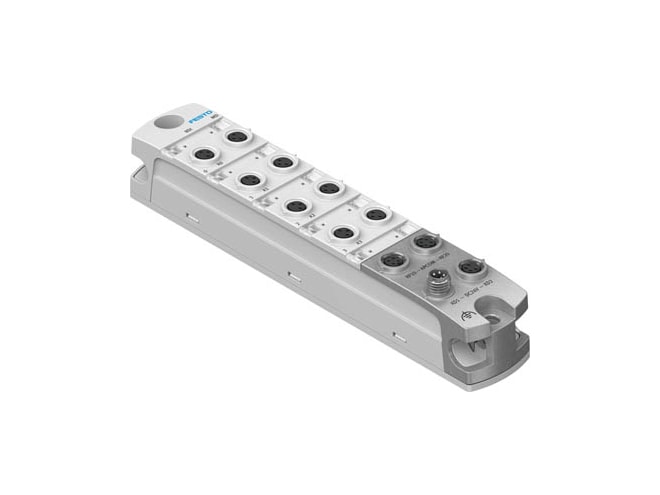

Festo CPX-AP-I-8DI-M8-3P Digital Input Module

Features

• 30 x 170 x 35 mm dimensions (W x l x h)
• On H-rail via accessories type of mounting
• With through-hole type of mounting
• 126G product weight
• 5 - 95% relative air humidity
• Non-condensing relative air humidity
• IP65 degree of protection
• IP67 degree of protection
• Unused connections sealed note on degree of protection
• 1 - Low corrosion stress corrosion resistance class cRC
• 30 m inputs max. cable length
• 50 m system communication max. cable length
• Power supply according to nominal voltage note on max. cable length
• VDMA24364-B2-L lABS (PWIS) conformity
• To EU EMC Directive cE mark (see declaration of conformity)
• To UK instructions for EMC cE marking (see declaration of conformity)
• KC-EMV kC mark
• RCM trademark approval
• C UL us listed (OL) approval
• UL E239998 certificate issuing authority
• RoHS-compliant note on materials
• PA material housing
• PC material housing
• Die-cast zinc, nickel-plated material housing
• FPM material o-ring
• Diagnostics per module diagnostics via lED
• Status per channel diagnostics via lED
• Short circuit/overload in sensor supply diagnostics per internal communication
• Electronics/sensors overvoltage diagnostics per internal communication
• Electronics/sensors undervoltage diagnostics per internal communication
• System communication XF10 IN / XF20 OUT communication interface, function
• 2x socket communication interface, connection type
• M8x1, D-coded according to EN 61076-2-114 communication interface, connection technology
• 4 communication interface, number of pins/wires
• AP communication interface, protocol
• Yes communication interface, shielding
• Incoming electronics/sensors and load power supply, function
• Plugs power supply, connection type
• M8x1, A-coded to EN 61076-2-104 power supply, connection system
• 4 power supply, number of pins/wires
• Outgoing electronics/sensors and load power transmission, function
• Socket power transmission, connection type
• M8x1, A-coded to EN 61076-2-104 power transmission, connection technology
• 4 power transmission, number of pins/wires
• SELV/PELV fixed power supplies required note regarding operating voltage
• Note voltage drop note regarding operating voltage
• 24V nominal dC operating voltage, electronics/sensors
• ± 25% permissible voltage fluctuations for electronics/sensors
• 2 x 4 A (external fuse required) max. power supply
• Typically 32 mA intrinsic current consumption at nominal operating voltage for electronics/sensors
• 10MS power failure bridging
• Yes reverse polarity protection
• Digital input electrical connection input, function
• 8x socket electrical connection input, connection type
• M8x1, A-coded to EN 61076-2-104 electrical connection input, connector system
• 3 electrical connection input, number of connections/cores
• 8 number of inputs
• To IEC 61131-2, type 3 characteristic for inputs
• Signal 0: <= 5 V switching level
• Signal 1: >= 11 V switching level
• PNP (positive switching) switching logic for inputs
• 2-wire sensors to IEC 61131-2 switching logic for inputs
• 3-wire sensors to IEC 61131-2 switching logic for inputs
• 0.1 ms input debounce time
• 3 ms input debounce time
• 10 ms input debounce time
• 20 ms input debounce time
• Internal electronic fuse per module fuse protection of inputs (short circuit)
• 1.8A max. residual current of inputs per module
• No electrical isolation of inputs between channels
• Yes electrical isolation of inputs between channel - internal communication
• -20GC ambient temperature to 50GC ambient temperature
• -40GC to 70GC storage temperature
