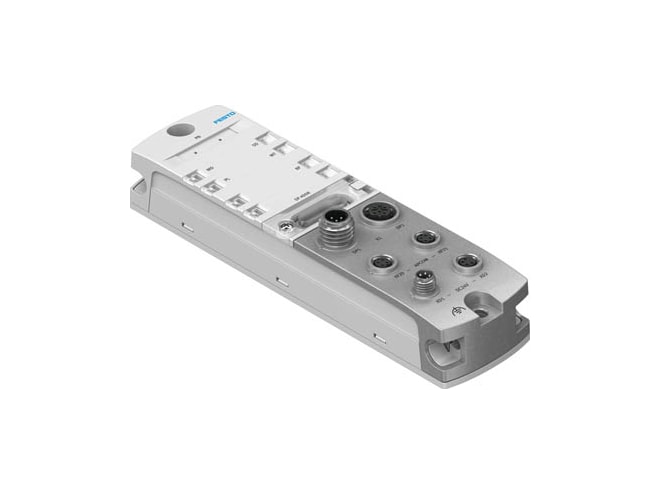

Festo CPX-AP-I-PB-M12 PROFIBUS Interface

Features

• 45 x 170 x 35 mm dimensions (W x l x h)
• On H-rail via accessories type of mounting
• With through-hole type of mounting
• 56 max. number of modules
• 186G product weight
• 5 - 95% relative air humidity
• Non-condensing relative air humidity
• IP65 degree of protection
• IP67 degree of protection
• Unused connections sealed note on degree of protection
• 1 - Low corrosion stress corrosion resistance class cRC
• 50 m system communication max. cable length
• VDMA24364-B2-L lABS (PWIS) conformity
• To EU EMC Directive cE mark (see declaration of conformity)
• To UK instructions for EMC cE marking (see declaration of conformity)
• KC-EMV kC mark
• RCM trademark approval
• C UL us listed (OL) approval
• UL E239998 certificate issuing authority
• RoHS-compliant note on materials
• PA material housing
• PC material housing
• Die-cast zinc, nickel-plated material housing
• FPM material o-ring
• Buffer error LED (BF) diagnostics via lED
• Diagnostics per module diagnostics via lED
• Power supply, electronics/sensors diagnostics via lED
• Load power supply diagnostics via lED
• System diagnostics diagnostics via lED
• Service required diagnostics via lED
• APDD invalid diagnostics via bus
• Load switch-off diagnostics via bus
• Communication with AP module interrupted diagnostics via bus
• Electronics/sensors overvoltage diagnostics via bus
• Load overvoltage diagnostics via bus
• Electronics/sensors undervoltage diagnostics via bus
• Load undervoltage diagnostics via bus
• Terminating resistor at socket possible note on fieldbus interface
• PROFIBUS fieldbus interface
• PROFIBUS DP-V1 field bus, protocol
• Incoming bus connection fieldbus interface, function
• Plugs field bus, connection type
• M12x1, B-encoded to EN 61076-2-101 field bus, connection system
• 5 field bus, connection pattern
• Yes field bus interface, electrical isolation
• 1.5 Mbps field bus interface, transmission rate
• 12 Mbit/s field bus interface, transmission rate
• 187.5 kbit/s field bus interface, transmission rate
• 19.2 kbit/s field bus interface, transmission rate
• 3 Mbit/s field bus interface, transmission rate
• 500 kbit/s field bus interface, transmission rate
• 6 Mbit/s field bus interface, transmission rate
• 9.6 kbit/s field bus interface, transmission rate
• 93.75 kbit/s field bus interface, transmission rate
• PROFIBUS fieldbus interface 2, type
• PROFIBUS DP-V1 fieldbus interface 2, protocol
• Outgoing bus connection fieldbus interface 2, function
• Socket fieldbus interface 2, connection type
• M12x1, B-encoded to EN 61076-2-101 fieldbus interface 2, connection technology
• 5 fieldbus interface 2, number of pins/wires
• Yes fieldbus interface 2, galvanic isolation
• 1.5 Mbps fieldbus interface 2, transmission rate
• 12 Mbps fieldbus interface 2, transmission rate
• 187.5 kbps fieldbus interface 2, transmission rate
• 19.2 kbps fieldbus interface 2, transmission rate
• 3 Mbps fieldbus interface 2, transmission rate
• 500 kbps fieldbus interface 2, transmission rate
• 6 Mbps fieldbus interface 2, transmission rate
• 9.6 kbps fieldbus interface 2, transmission rate
• 93.75 kbps fieldbus interface 2, transmission rate
• 244AD max. address volume, inputs
• 244AD max. address volume, outputs
• GSD file configuration support
• System communication XF20 OUT / XF21 OUT communication interface, function
• 2x socket communication interface, connection type
• M8x1, D-coded according to EN 61076-2-114 communication interface, connection technology
• 4 communication interface, number of pins/wires
• AP communication interface, protocol
• Yes communication interface, shielding
• Incoming electronics/sensors and load power supply, function
• Plugs power supply, connection type
• M8x1, A-coded to EN 61076-2-104 power supply, connection system
• 4 power supply, number of pins/wires
• Outgoing electronics/sensors and load power transmission, function
• Socket power transmission, connection type
• M8x1, A-coded to EN 61076-2-104 power transmission, connection technology
• 4 power transmission, number of pins/wires
• SELV/PELV fixed power supplies required note regarding operating voltage
• Note voltage drop note regarding operating voltage
• 24V nominal operating voltage dC of load
• ± 25 % permissible voltage fluctuation of load
• 24V nominal dC operating voltage, electronics/sensors
• ± 25% permissible voltage fluctuations for electronics/sensors
• 2 x 4 A (external fuse required) max. power supply
• Typically 80 mA intrinsic current consumption at nominal operating voltage for electronics/sensors
• Typically 5 mA intrinsic current consumption at nominal operating voltage load
• 10MS power failure bridging
• Yes reverse polarity protection
• -20GC ambient temperature to 50GC ambient temperature
• -40GC to 70GC storage temperature
