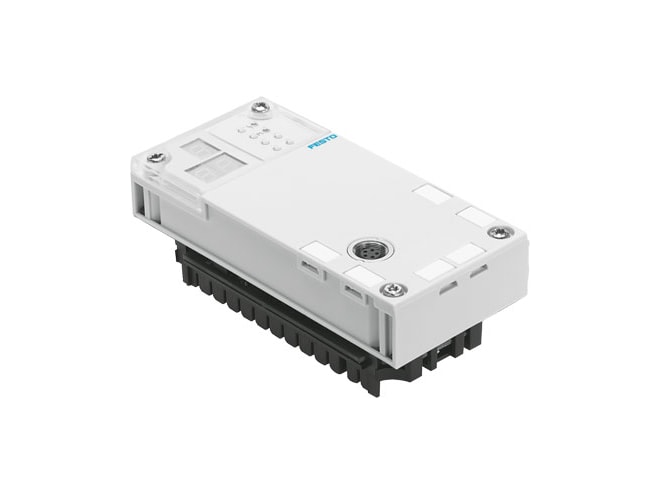

Festo CPX-CMIX-M1-1 Measuring Module

Features

• 50 x 107 x 55 mm dimensions (W x l x h)
• Channel-oriented and module-oriented diagnostics diagnosis
• Yes short circuit current rating
• Undervoltage of modules device-specific diagnostics
• Measuring system undervoltage device-specific diagnostics
• Via local 7-segment display device-specific diagnostics
• 9 max. number of modules
• 7-segment display display
• LED yellow = PL (power load) status displays
• LED red = error status displays
• 18V operational voltage range dC
• 30V operational voltage range dC
• 24V nominal operating voltage dC
• 10MS power failure bridging
• 80MA current consumption at nominal operating voltage
• C-Tick approval
• VDMA24364-B2-L lABS (PWIS) conformity
• 5 - 95% relative air humidity
• Non-condensing relative air humidity
• IP65 degree of protection
• To IEC 60529 degree of protection
• 140G product weight
• 1 axes per string
• 1 number of axis strings
• 30 m max. cable length
• Socket electrical connection control interface
• M9 electrical connection control interface
• 5-pin electrical connection control interface
• Digital control-Interface
• CAN bus with Festo protocol control-Interface
• RoHS-compliant note on materials
• PA-reinforced material housing
• -5GC ambient temperature to 50GC ambient temperature
• -20GC to 70GC storage temperature
