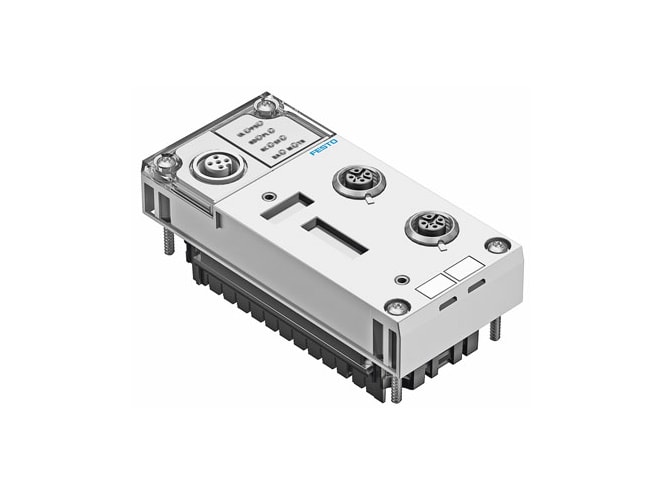

Festo CPX-FB39 Bus Node

Bus node series designed to handle communication between the electrical terminal and Sercos III bus node. View other configurations.

$966.81
Part Numbers
  • CPX-FB39
  • 2093101
Highlights...

Features

  • Sercos III protocol
  • (incl. interlinking block) dimensions (W x l x h)
  • 50 x 107 x 50 mm dimensions (W x l x h)
  • 125G product weight
  • IP65 degree of protection
  • IP67 degree of protection
  • 1 - Low corrosion stress corrosion resistance class cRC
  • VDMA24364-B2-L lABS (PWIS) conformity
  • RoHS-compliant note on materials
  • PA-reinforced material housing
  • M: Modify, parameterisation lED display, product-specific
  • PL: Load supply lED display, product-specific
  • PS: Electronics supply, sensor supply lED display, product-specific
  • SF: System fault lED display, product-specific
  • S: Sercos LED lED display, bus-specific
  • SD: Sercos sub-device LED lED display, bus-specific
  • TP1: Network active port 1 lED display, bus-specific
  • TP2: Network active port 2 lED display, bus-specific
  • Channel-oriented and module-oriented diagnostics device-specific diagnostics
  • Undervoltage of modules device-specific diagnostics
  • Diagnostic memory device-specific diagnostics
  • DIL switch operator controls
  • 2x socket, M12x1, 4-pin, D-coded field bus interface
  • 64AD max. address volume, inputs
  • 64AD max. address volume, outputs
  • Diagnostic behaviour parameterisation
  • Fallback output data parameterisation
  • Forcing of channels parameterisation
  • Signal setup parameterisation
  • System parameter parameterisation
  • 100 Mbit/s, full/half duplex baud rate
  • SDDML-document configuration support
  • Acyclic and cyclic data access via Sercos additional functions
  • IP addressing via Sercos parameters or operator unit additional functions
  • Channel-oriented diagnostics via fieldbus additional functions
  • Start-up parameterisation in plain text via fieldbus additional functions
  • System status can be mapped using process data additional functions
  • Additional diagnostic interface for operator units additional functions
  • 18V operational voltage range dC
  • 30V operational voltage range dC
  • 24V nominal operating voltage dC
  • Typically 100 mA intern power consumption nominal operating voltage
  • -5GC ambient temperature to 50GC ambient temperature
  • -20GC to 70GC storage temperature
