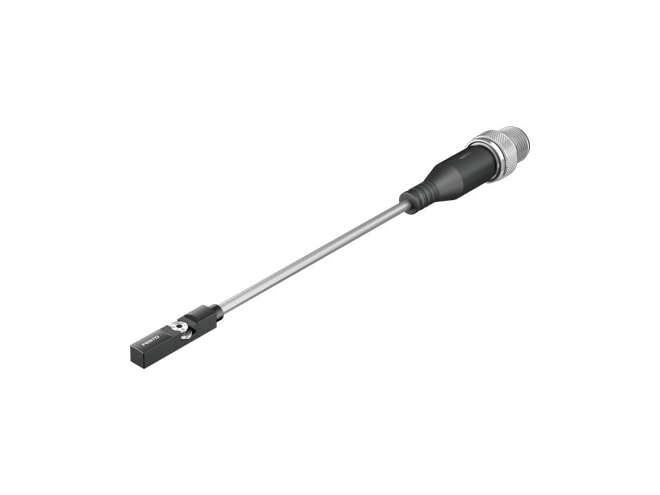

Festo CRSMT-8M-PS-24V-K-0,3-M12-EX2 Proximity Sensor

Features

• For T-slot design
• EN 60947-5-2 based on standard
• 991153 symbol
• RCM trademark approval
• To EU EMC Directive cE mark (see declaration of conformity)
• To EU Explosion Protection Directive (ATEX) cE mark (see declaration of conformity)
• In accordance with EU RoHS Directive cE mark (see declaration of conformity)
• To UK instructions for EMC cE marking (see declaration of conformity)
• To UK EX instructions cE marking (see declaration of conformity)
• To UK RoHS instructions cE marking (see declaration of conformity)
• II 3G aTEX category gas
• Ex ec IIC T4 Gc X explosion ignition protection type for gas
• II 3D aTEX category dust
• Ex tc IIIC T120°C Dc X explosion ignition protection type for dust
• EPL Dc (GB) explosion protection certification outside the eU
• EPL Gc (GB) explosion protection certification outside the eU
• -40°C <= Ta <= +85°C explosion ambient temperature
• Resistant to cooling lubricants special characteristics
• Alkali resistant special characteristics
• Acid resistant special characteristics
• RoHS-compliant note on materials
• Free of halogen note on materials
• Support / actuator-sensor overview "The right sensor for the actuator" instructions on use
• Position measured variable
• Magneto-resistive measuring principle
• -40GC ambient temperature
• 85GC ambient temperature
• 0.2MM repetition accuracy
• PNP switching output
• N/O contact switching element function
• 1MS switch-on time
• 1MS switch-off time
• 180HZ max. switching frequency
• 100MA max. output current
• 100MA max. output current using mounting kits
• 2.8W max. switching capacity dC
• 2.8W max. switching capacity dC using mounting kits
• 1.5V voltage drop
• Adapted to MZ, MY, ME coils inductive protective circuit
• 0MA min. load current
• 0.05MA off-state current
• Yes short circuit current rating
• Available overload protection
• 24V rated operational voltage dC
• 5V operational voltage range dC
• 30V operational voltage range dC
• 10 % residual ripple
• For all electrical connections reverse polarity protection
• Cable with plug electrical connection 1, connection type
• M12x1, A-coded to EN 61076-2-101 electrical connection 1, connector system
• 3 electrical connection 1, number of connections/cores
• Screw-type lock electrical connection 1, type of mounting
• 995573 electrical connection 1, connection pattern
• In-line connection outlet orientation
• Brass, nickel-plated and gold-plated material electrical contact
• PP material connector housing
• Bending strength: to Festo standard test conditions cable
• Torsional resistance: > 300,000 cycles, ± 270°/0.1 m test conditions cable
• Energy chain: > 5 million cycles, bending radius 75 mm test conditions cable
• 0.3M cable length
• Standard/suitable for energy chains cable characteristic
• Grey cable sheath colour
• TPE-O material cable sheath
• PP material insulating sheath
• Screw-clamped type of mounting
• Insertable in the slot from above type of mounting
• 0.1NM tightening torque
• 0.6NM tightening torque
• 0.6NM max. tightening torque
• Optional mounting position
• 9.1G product weight
• Black housing colour
• PA material housing
• PP material housing
• High-alloy stainless steel material housing
• Nickel-plated brass material union nut
• Yellow LED switching status indication
• Orange LED function reserve indication
• -20GC ambient temperature with moving cable
• 85GC ambient temperature with moving cable
• IP65 degree of protection
• IP68 degree of protection
• IP69K degree of protection
• Design insensitive to permanent magnetic fields < Bon immunity to magnetic fields
• VDMA24364-B2-L lABS (PWIS) conformity
• See supplementary material information suitable for use with food
