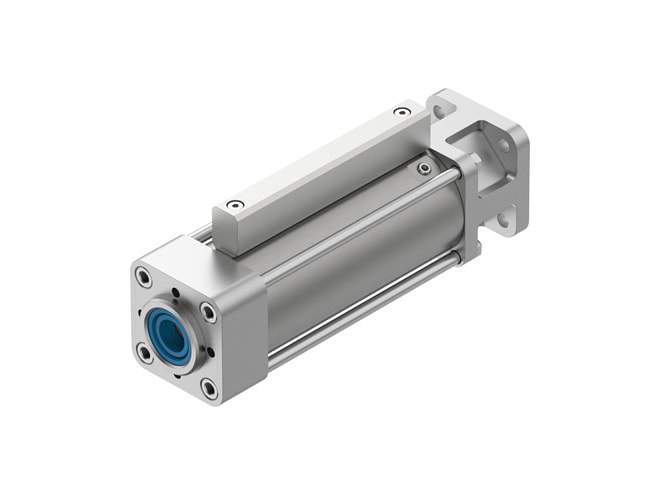

Festo DACS-16-A-R3-S Holding Brake

Features

• Optional mounting position
• On both sides type of clamping with direction of action
• Clamping via spring force, air to release type of clamping with direction of action
• 992086 symbol
• Via proximity switch position detection
• Holding and stopping a movement safety function
• Stopping, holding, blocking a movement/category 1, Performance Level c performance level (PL)
• 0.38MPA operating pressure
• 0.8MPA operating pressure
• 3.8BAR operating pressure
• 8BAR operating pressure
• 55.1PSI operating pressure
• 116PSI operating pressure
• 8BAR max. permissible test pressure
• 3.8BAR min. release pressure
• 16MM round material to be clamped
• German Technical Control Board (TÜV) approval
• To EC Machinery Directive cE mark (see declaration of conformity)
• To UK regulations for machines cE marking (see declaration of conformity)
• German Technical Control Board (TÜV) CA 697 certificate issuing authority
• Compressed air to ISO 8573-1:2010 [7:4:4] operating medium
• 3 - high corrosion stress corrosion resistance class cRC
• VDMA24364-B2-L lABS (PWIS) conformity
• 1350N static holding force
• 1483G product weight
• Via female thread type of mounting
• With accessories type of mounting
• G1/8 release connection, clamping unit
• RoHS-compliant note on materials
• NBR material seals
• TPE-U(PU) material seals
• High-alloy steel material spring
• Steel material housing
• Tool steel material clamp jaws
• Steel material piston
• -20GC ambient temperature to 80GC ambient temperature
