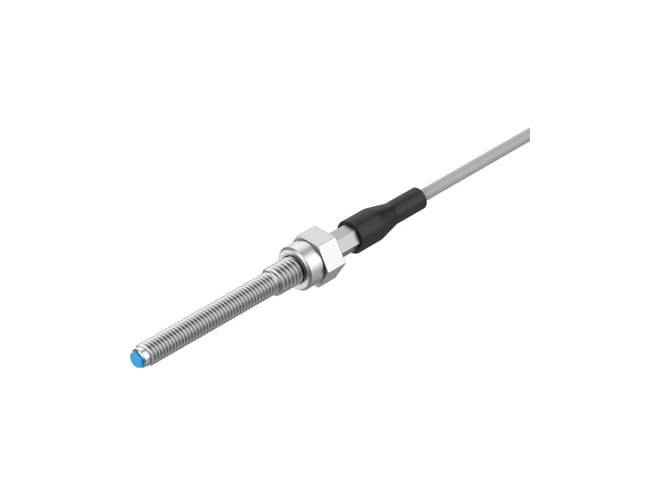

Festo DADG-D-F8-25 Proximity Switch

Features

• EN 60947-5-2 conforms to standard
• 991702 symbol
• RCM trademark approval
• C UL us (OL) approval
• To EU EMC Directive cE mark (see declaration of conformity)
• RoHS-compliant note on materials
• 0.6MM rated operating distance
• 0.64MM assured operating distance
• Aluminium = 0.55 reduction factors
• Stainless steel St 18/8 = 0.8 reduction factors
• Copper = 0.5 reduction factors
• Brass = 0.65 reduction factors
• Steel St 37 = 1.0 reduction factors
• 0.01MM repetition accuracy
• PNP switching output
• N/O contact switching element function
• 5000HZ max. switching frequency
• 5000HZ max. switching frequency dC
• 100MA max. output current
• 2V voltage drop
• Pulsed short circuit current rating
• 10V operational voltage range dC
• 30V operational voltage range dC
• 10 % residual ripple
• 10MA no-load supply current
• For all electrical connections reverse polarity protection
• Cable electrical connection 1, connection type
• Open end electrical connection 1, connector system
• 3 electrical connection 1, number of connections/cores
• 2M cable length
• TPE-U(PUR) material cable sheath
• M4 size
• Screw-clamped type of mounting
• Flush mounting type
• 30G product weight
• Steel material housing
• IP67 degree of protection
• VDMA24364 zone III lABS (PWIS) conformity
• -25GC ambient temperature to 70GC ambient temperature
