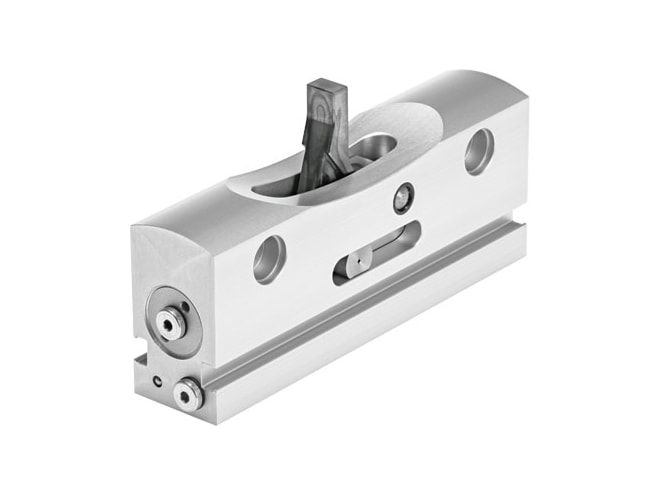

Festo DADM-EP-G6-16 Intermediate-position Module

Features

• 16 size
• Optional mounting position
• Force pilot operated motion sequence design
• Via proximity switch position detection
• 991270 symbol
• 0.8M/S max. impact speed
• 150MS max. swivel time
• ±0.02 mm repetition accuracy
• Compressed air to ISO 8573-1:2010 [7:-:-] operating medium
• Lubricated operation possible (in which case lubricated operation will always be required) note on operating and pilot medium
• 1 - Low corrosion stress corrosion resistance class cRC
• VDMA24364-B1/B2-L lABS (PWIS) conformity
• 1100N max. stop force
• 340G product weight
• Via through-hole and centring sleeve type of mounting
• RoHS-compliant note on materials
• PU material seals
• Wrought aluminium alloy material housing
• High-alloy stainless steel material lever
• 3BAR to 6BAR operating pressure
• 0GC ambient temperature to 60GC ambient temperature
• Pneumatic connection m5
