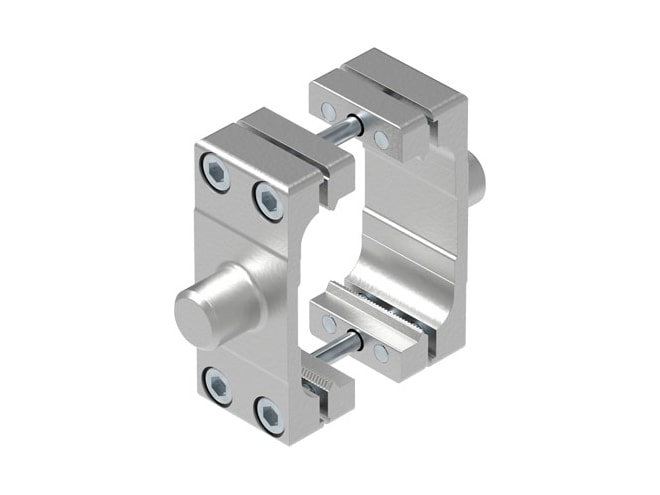

Festo DAMT-V1-40-A Trunnion Mounting Kit

Features

• 40 size
• ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI 10290) based on standard
• 1 - Low corrosion stress corrosion resistance class cRC
• VDMA24364-B2-L lABS (PWIS) conformity
• Metals with more than 1% copper by mass are excluded from use. Exceptions are printed circuit boards, cables, electrical plug connectors and coils suitability for the production of li-ion batteries
• 387.5G product weight
• RoHS-compliant note on materials
• Steel material screws
• Galvanised material screws
• Galvanised steel material trunnion flange
• Galvanised steel material clamping piece
• High-alloy stainless steel material rod
• -40GC ambient temperature to 150GC ambient temperature
