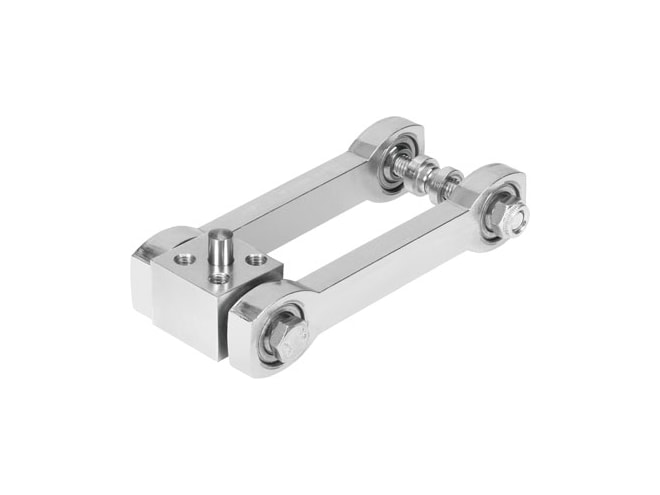

Festo DARD-L1-32-M Moment Compensator

$191.67
Part Numbers
  • DARD-L1-32-M
  • 2349276
Highlights...

Features

  • 32 size
  • 2.5MM radial deviation +/-
  • 1 - Low corrosion stress corrosion resistance class cRC
  • VDMA24364-B1/B2-L lABS (PWIS) conformity
  • 1300N max. permissible long-term load in force direction +/-
  • 275G product weight
  • RoHS-compliant note on materials
  • Galvanised steel material adapter
  • High-alloy stainless steel material bolt
  • Galvanised steel material bushing
  • Galvanised steel material joint
  • Coated steel material screws
  • -10GC ambient temperature to 60GC ambient temperature
