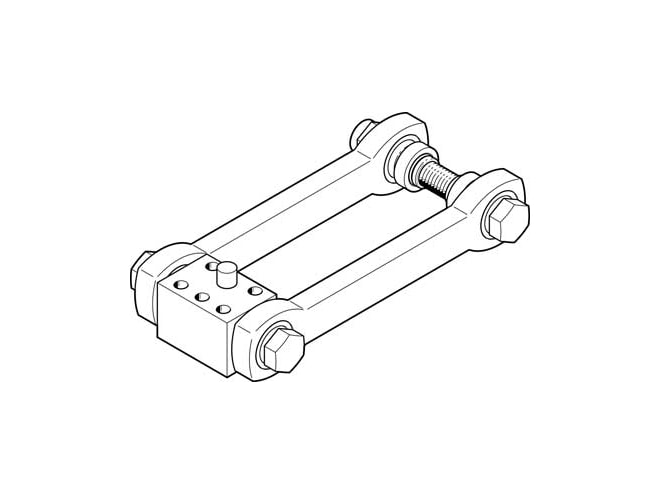

Festo DARD-L1-80-M Moment Compensator

$552.12
Part Numbers
  • DARD-L1-80-M
  • 2349280
Highlights...

Features

  • 80 size
  • 4MM radial deviation +/-
  • 1 - Low corrosion stress corrosion resistance class cRC
  • VDMA24364-B1/B2-L lABS (PWIS) conformity
  • 7800N max. permissible long-term load in force direction +/-
  • 2815G product weight
  • RoHS-compliant note on materials
  • Galvanised steel material adapter
  • Steel material bolt
  • Galvanised steel material bushing
  • Galvanised steel material joint
  • Coated steel material screws
  • -10GC ambient temperature to 60GC ambient temperature
