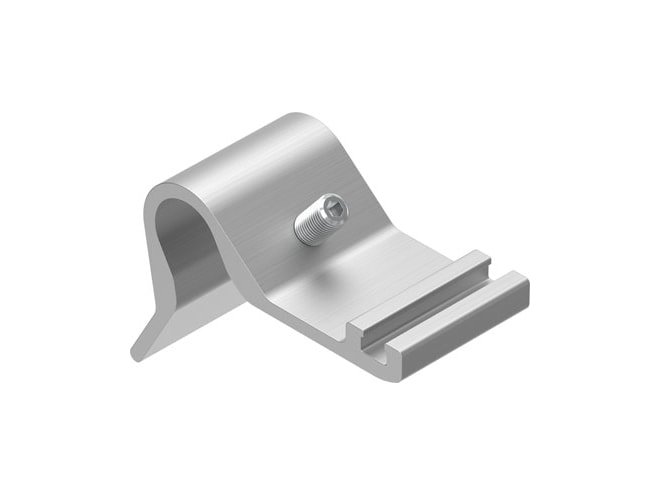

Festo DASP-M4-160-A Sensor Bracket

$18.90
Part Numbers
  • DASP-M4-160-A
  • 1553813
Highlights...

Features

  • 160 size
  • For tie rod design
  • Optional mounting position
  • Ø160 - Ø200 for piston diameter
  • 3 - high corrosion stress corrosion resistance class cRC
  • VDMA24364-B2-L lABS (PWIS) conformity
  • 0.6NM tightening torque
  • 1NM tightening torque
  • 41.5G product weight
  • RoHS-compliant note on materials
  • Wrought aluminium alloy material housing
  • Anodised material housing
  • High-alloy stainless steel material screws
