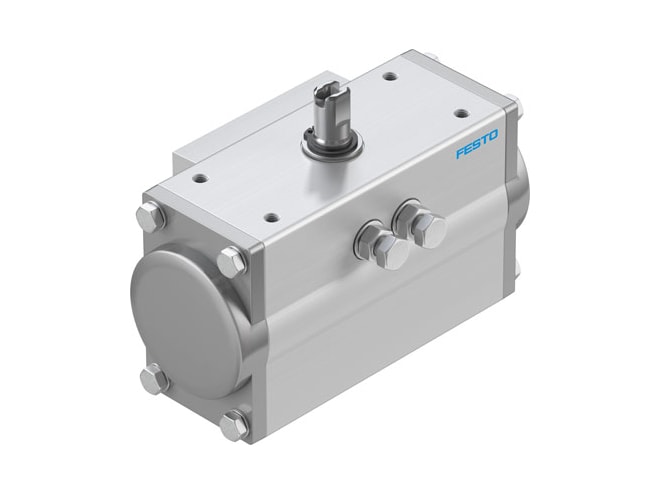

Festo DFPD Series Semi-Rotary Drive

Aluminum semi-rotary drive series ideal for automating butterfly, ball, or air shut-off valves.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our engineers at 1-802-880-3123. We’re open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Learn more about this configuration...
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • Uniform torque characteristic across the entire rotation angle of 90° with the double-acting version
  • Version with swivel angle 120°, 135°, 180° for the sizes 40, 120, 240, 480, double-acting
  • Process valve connector according to ISO 5211
  • Mounting hole pattern to VDI/VDE 3845
  • Sturdy, non-slip aluminum housing
  • Long service life, low wear
  • Increased corrosion protection

The Festo DFPD Series is a line of semi-rotary drives that feature a rack and pinion combination with a constant torque characteristic across the entire swivel range. The quarter turn actuators DFPD are ideal for automating butterfly valves, ball valves and air shut off valves. They can be used as an individual actuator or as part of a complete automated process valve system from Festo. With a torque range from 10 to 2,300Nm, a rotation angle up to 180° and corrosion-resistant versions, the single or double-acting DFPD is suitable for ball valves, butterfly valves or air dampers in the chemical, pharmaceutical and beverage industries, as well as for water treatment.
