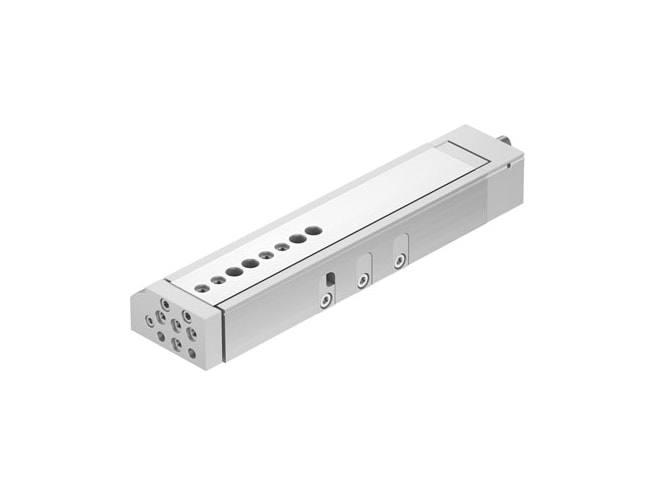

Festo DGSL Series Mini Slide

Slide actuator with ball-bearing guide and adaptation options such as stroke reduction, end-position locking, and clamping unit.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our engineers at 1-802-880-3123. We’re open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Learn more about this configuration...
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • High load capacity and positioning accuracy
  • Movement precision thanks to ground-in ball bearing cage guide
  • Flexibility due to 8 sizes available
  • Variants with clamping unit or end-position locking for fixing the guide carriage
  • Wide variety of mounting and attachment options
  • Cushioning options available
  • Compact design
The Festo DGSL Series is a line of double-acting, mini slide actuators with a ball-bearing guide. They feature additional adaptation options such as stroke reduction, end-position locking, and a clamping unit. These slides are available with a multitude of cushioning options available: no cushioning, elastic cushioning, adjustable elastomer cushioning, short elastomer cushioning, shock absorber, and shock absorber with reducing sleeve. Mounting options are available on the drive body, slide, and yoke plate.
