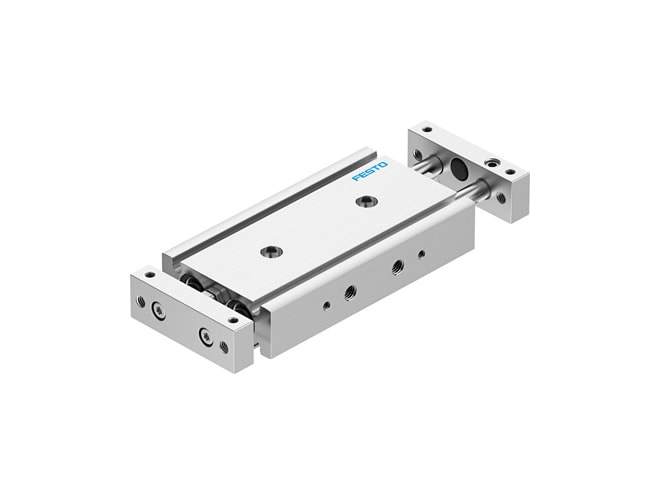

Festo DGTZ Series Twin Cylinder

Twin cylinder series with one or two end plates and standard strokes of up to 100mm.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our engineers at 1-802-880-3123. We’re open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Learn more about this configuration...
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • Standard strokes of up to 100mm
  • Minimal mounting time
  • High resistance to torques and lateral forces
  • High rigidity
  • Drive available with one or two end plates
  • Actuator and guide unit in a single housing
  • Plain bearing

The Festo DGTZ Series is a line of twin cylinders designed with a high resistance to torques and lateral forces. Additionally, they feature high rigidity thanks to its guide rods with large diameter and two plain-bearing bushes. The actuator and guide unit are together in a single housing. There are multiple mounting options available: flat from above, underneath, or from the s ide. Due to its copper-free nature, the DGTZ are suitable for use in the electronics industry.
