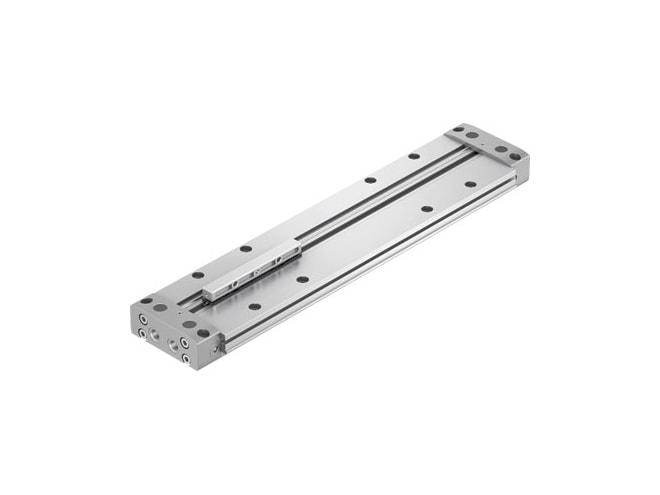

Festo DLGF Series Linear Drive

Flat linear drive series with guide options available and a piston diameter range between 20 to 40mm.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our engineers at 1-802-880-3123. We’re open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Learn more about this configuration...
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • Flat, rodless drive
  • Space-saving installation
  • Self-adjusting pneumatic end-position cushioning
  • Supply port at the left, right, both ends, or from below
  • Guide options available:
    • Without an external guide
    • With a standard recirculating ball bearing guide
  • Loads and machining jigs can be directly mounted on the slide
  • Piston diameter sizes available from 20 to 40mm

The Festo DLGF Series is a line of flat, rodless linear drives that can be combined with suitable cylinders and linear slides without adapter plates or another DLGF coupled together. It can also be supplied/connected below the table. There are two guide options available: without an external guide or with a recirculating ball bearing guide. The option without an external guide is ideal for simple actuator functions in small spaces whereas the standard recirculating ball bearing guides allows for high torque and heavy load functions. Additionally, there is a self-adjusting pneumatic cushioning feature included.
