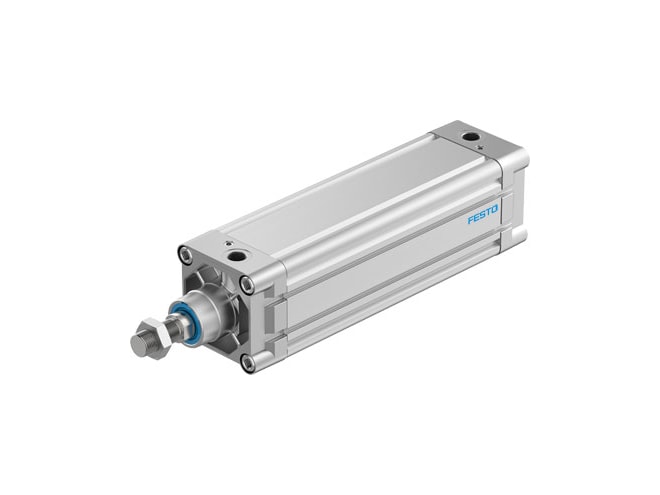

Festo DNC Series ISO Cylinder

Standards-based cylinder, double-acting with adjustable cushioning, based on ISO 15552.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our engineers at 1-802-880-3123. We’re open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Learn more about this configuration...
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • 32 to 125mm piston diameter
  • 25 to 800mm stroke
  • Pneumatic cushioning
  • 0.06 to 1.2MPa operating pressure
  • -4° to 176°F (-20° to 80°C) ambient temperature
  • Operating medium:
    • Compressed air as per ISO 8573-1:2010 [7:4:4]
    • Operation with oil lubrication possible
  • Position sensing for proximity sensor available
  • ISO 15552 (ISO 6431, VDMA 24562)

The Festo DNC Series ISO Cylinder is a profile cylinder based on the ISO 15552 standard and features adjustable pneumatic cushioning. Its modern, consistent design saves up to 11% more space than ordinary standards-based cylinders, providing a significantly more compact system structure. The ISO Cylinder has a magnetic piston for position-sensing and the pneumatic cushioning of the unit is adjustable at both ends. They can be mounted via the internal thread or a component from a comprehensive range of mounting accessories for just about every type of installation. The ISO Cylinder is available with a 32 to 125mm piston diameter and 25 to 800mm stroke and is manufactured to meet RoHS compliance.
