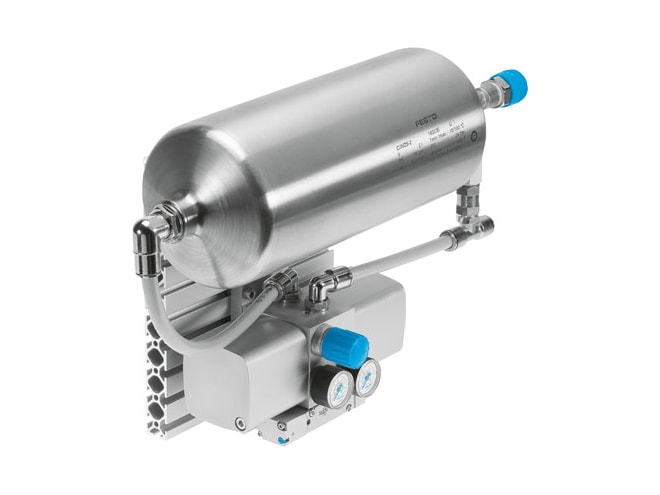

Festo DPA-40-16-CRVZS2 Pressure Booster

Features

• 40 mm piston diameter
• 2 l volume
• Optional mounting position
• Twin-piston pressure booster design
• With air reservoir design
• Via pressure gauge design
• With check valve design
• 991432 symbol
• With pressure gauge pressure gauge (ANALOG) or pressure display (DIGITAL)
• 0.45MPA output pressure 2
• 1.6MPA output pressure 2
• 4.5BAR output pressure 2
• 16BAR output pressure 2
• 65.25PSI output pressure 2
• 232PSI output pressure 2
• 0.25MPA operating pressure
• 0.8MPA operating pressure
• 2.5BAR operating pressure
• 8BAR operating pressure
• 36.25PSI operating pressure
• 116PSI operating pressure
• 0.45MPA pressure regulation range
• 1.6MPA pressure regulation range
• 4.5BAR pressure regulation range
• 16BAR pressure regulation range
• 65.25PSI pressure regulation range
• 232PSI pressure regulation range
• 2BAR inlet pressure 1
• 8BAR inlet pressure 1
• 0.2MPA inlet pressure 1
• 0.8MPA inlet pressure 1
• 29PSI inlet pressure 1
• 116PSI inlet pressure 1
• Compressed air to ISO 8573-1:2010 [7:3:4] operating medium
• Lubricated operation not possible note on operating and pilot medium
• 2 - Moderate corrosion stress corrosion resistance class cRC
• VDMA24364-B1/B2-L lABS (PWIS) conformity
• 4400G product weight
• Via slot nuts type of mounting
• RoHS-compliant note on materials
• High-alloy stainless steel material air reservoir
• 5GC ambient temperature to 60GC ambient temperature
• 5GC to 60GC storage temperature
• Pneumatic connection qS-10 , port 1
• Pneumatic connection kD4 , port 2
• Pneumatic connection silencer , port 3
