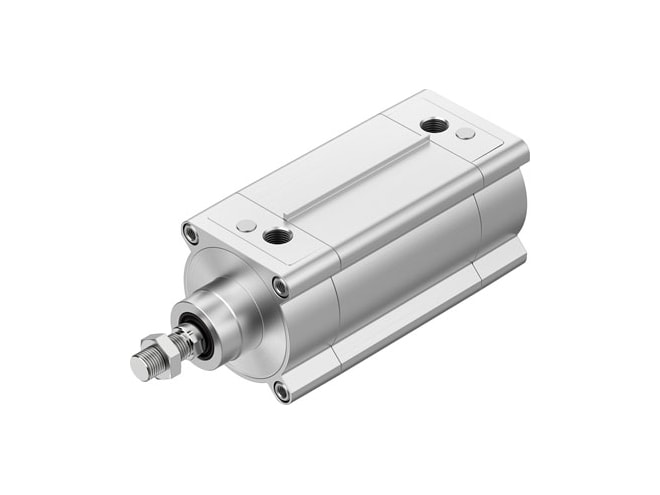

Festo DSBF Series ISO Cylinder

Meets ISO 15552 standards. Easy-to-clean design with increased corrosion protection and long service life.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our engineers at 1-802-880-3123. We’re open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Learn more about this configuration...
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • Mode of operation: double-acting
  • Dimensions to ISO 15552 standards
  • 32 to 125mm piston diameter
  • 25 to 500mm stroke
  • Three cushioning options:
    • Elastic cushioning rings/plates
    • Adjustable pneumatic cushioning
    • Self-adjusting pneumatic cushioning
  • Magnetic piston for position sensing
  • Optional dry-running seal for long service life
  • FDA-approved lubrication and sealing on the basic design

The Festo DSBF Series ISO Cylinder is designed for use wherever hygiene, ease of cleaning, and resistance are important, predominantly in dry and splash zones in the food and packaging industry. It is resistant to conventional cleaning agents and features increased corrosion resistance. The DSBF series cylinder is available with 32 to 125mm piston diameter sizes, 25 to 500mm stroke options, and three types of cushioning. Variants of this unit can also be configured to provide additional temperature resistances, wiper seal, or to include an II 2GD EU certification.

Applications

  • Food and packaging
  • Stretch blow moulding of PET bottles
