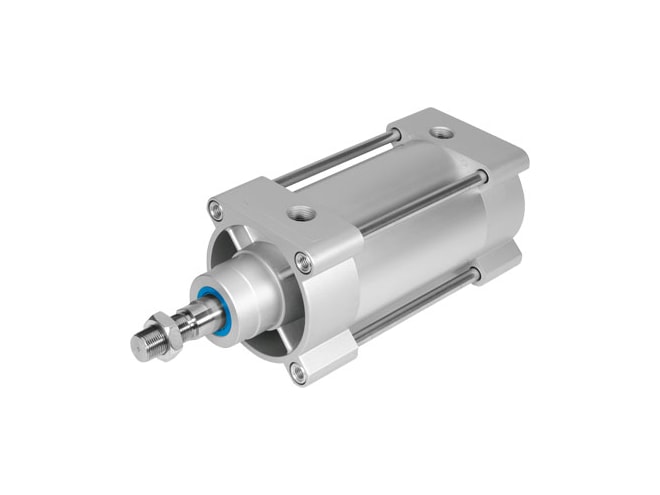

Festo DSBG Series ISO Cylinder

Rugged tie rod cylinder to ISO 15552 standard, with magnetic piston for position sensing.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our engineers at 1-802-880-3123. We’re open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • 32 to 320mm piston diameter
  • 25 to 500mm stroke
    • Up to 2,800mm available upon request
  • II 2GD certification available
    • for use in potentially explosive areas
  • A comprehensive range of mounting accessories
  • ISO 15552 (ISO 6431, VDMA 24562)

The Festo DSBG Series ISO Cylinder is double-acting and features a sturdy tie-rod design for applications in the process, mining, and mineral industries. It has contactless position sensing and offers the option of adding protection against rotation. Three types of cushioning are available — elastic, adjustable pneumatic, and self-adjusting pneumatic cushioning. Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts well to load and speed changes. A wide range of variants may also be configured to meet the needs of an application, such as protection against particles, high corrosion protection, heat resistance, or an EU certification for explosive environments.

Part Number Price Available
DSBG-50-50-PPVA-N3
Show Configuration
$291.40 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-3 weeks". Click here to select options
