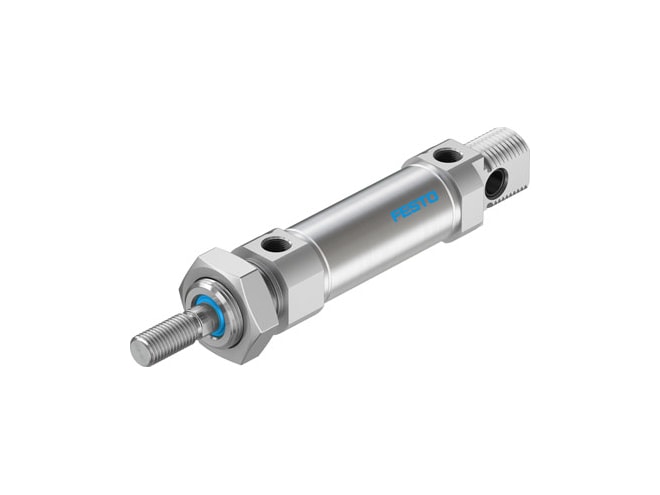

Festo DSNU Series Round Cylinder

Double-acting, inch series cylinder based on ISO 6432 with a wide range of variants for customized applications.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our engineers at 1-802-880-3123. We’re open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Learn more about this configuration...
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • 5/16 to 2-1/2in piston diameter
  • 1/2 to 12in stroke
  • Variants include:
    • Through piston rod
    • Flexible cushioning at both ends
    • Adjustable air cushioning at both ends
  • Magnetic piston for position sensing
  • Good running performance and long service life
  • Piston rod with internal or external thread
  • Magnetic piston for position sensing

The Festo DSNU Series Round Cylinder is a durable, double-acting unit that meets the highest requirements for running
characteristics, service life, and load-carrying ability. The DNSU series cylinder has a magnetic piston for position sensing and has an optional through piston rod variant. It is available with piston diameters ranging from 5/16 to 2 1/2 inches, stroke up to 12 inches, and two cushioning options: standard elastic or adjustable pneumatic.
