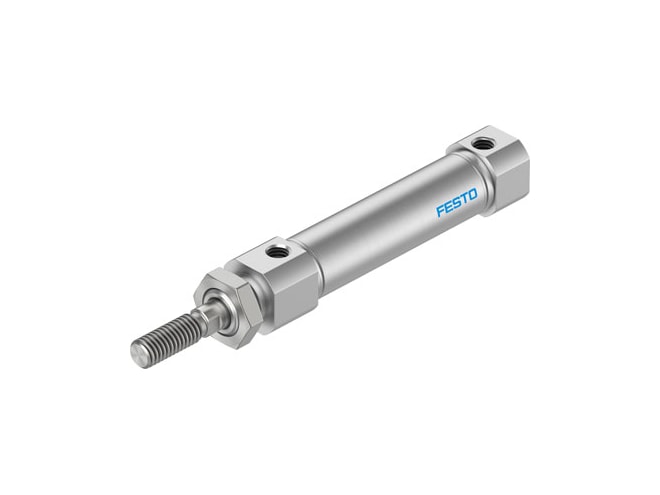

Festo DSNU-S Series Round Cylinder

Lightweight, compact cylinder for quick and easy installation, even in tight spaces.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our engineers at 1-802-880-3123. We’re open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Learn more about this configuration...
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • 8 to 25mm piston diameter
  • 1 to 200mm stroke
  • Fixed or self-adjusting cushioning
  • External piston rod thread
  • Variant available for manufacturing of lithium-ion batteries
  • Sustainable in production due to reduction of material use
  • Up to 35 millimeters shorter than its related standards-based cylinder
  • Up to 40 percent more slender than its related standards-based cylinder
  • Slim mounting thread for direct fastening of the cylinder

The Festo DSNU-S Series Round Cylinder is a durable, lightweight variant of the DNSU cylinder that is ideal for use in tight spaces or applications where the cylinder needs to be carried as a moving mass. This compact double-acting pneumatic cylinder can be mounted with only one central thread on the side of the piston rod and features key flats, fixed or self-adjusting cushioning functions, and a magnetic piston for position sensing. The self-adjusting pneumatic cushioning option is designed to save time during commissioning and adapt optimally to load and speed changes. The DSNU-S series is available with piston diameters ranging from 8 to 25mm and 10 to 200mm stroke. Extended or shortened piston and thread options are available upon request.
