Festo DSR Series Semi-rotary Drive

Rotary vane actuator with spigot or hollow flanged shaft and adjustable swivel angle in 10 to 40mm sizes.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our engineers at 1-802-880-3123. We’re open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • Spigot or hollow flanged shaft
  • 10 to 40mm sizes
  • 180° nominal swivel angle
  • 0.5 to 20Nm theoretical torque at 6 bar
  • Elastic cushioning rings/plates on both sides

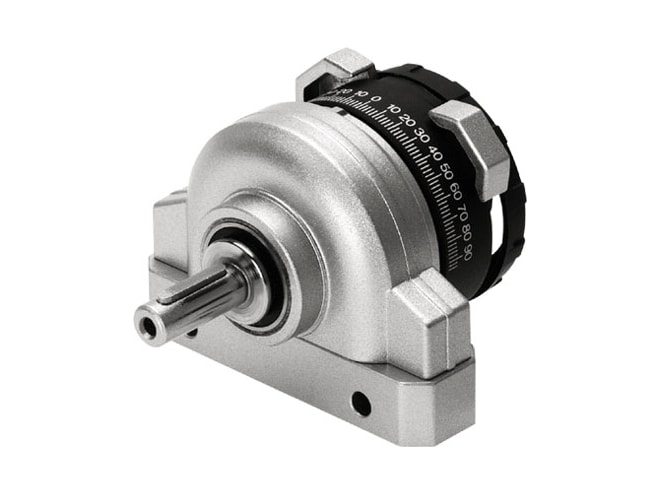

The Festo DSR Series Semi-rotary Drive is a rotary vane actuator with direct transmission to the drive shaft via a vane. It has a swivel angle that is infinitely adjustable from 0 to 184° (Except for DSRL-10 and 12 which have a swivel angle of 0 to 181°). The adjustable stop system is separate from the vane, so forces are absorbed by the stop blocks. In the end positions, the stops are cushioned with elastic polymer pads. The DSR series is available in 10 to 40mm sizes and with a spigot or hollow flanged shaft. The versions with a hollow flange shaft can convey liquid or gaseous media, or tubing and electric cables.

Part Number Price Available
DSR-25-180-P
Show Configuration
$602.54 4 in stock
DSR-16-180-P
Show Configuration
$559.06 1 in stock
