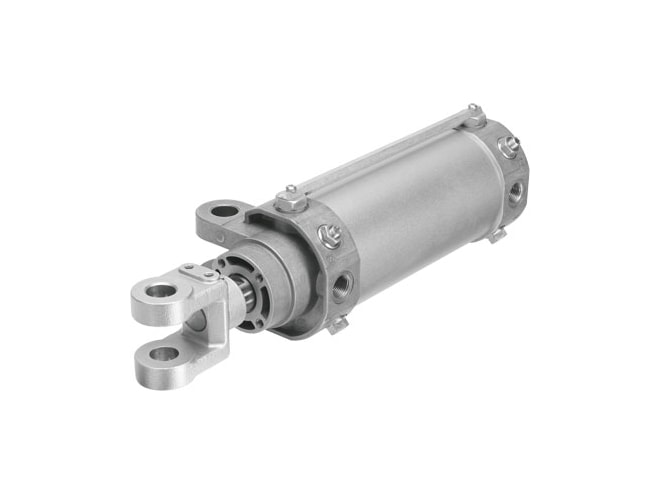

Festo DW Series Hinge Cylinder

Double-acting with easy mount design, integrated flow control and throttling.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our engineers at 1-802-880-3123. We’re open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Learn more about this configuration...
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • 28 to 19.5mm rod clevis gap options
  • 50 to 80mm piston diameters
  • 50 to 150mm stroke
  • Position sensing
    • With or without magnet
    • Optional sensor rail with magnet option
  • Rc or G pneumatic thread connection
  • Integrated end-position cushioning
  • Rod wiper seal to protect against welding spatter
  • Asian automotive standard for car body production

The Festo DW Series Hinge Cylinder has an articulated design and joint yoke on the bearing cap, making it ideal for clamping components in welding processes. This cylinder features integrated end-position cushioning and a rod wiper seal to protect against welding spatter. The DW series is configurable with 28 to 19.5mm rod clevis gap size options, 50 to 80mm piston diameters, and up to 150mm stroke.
