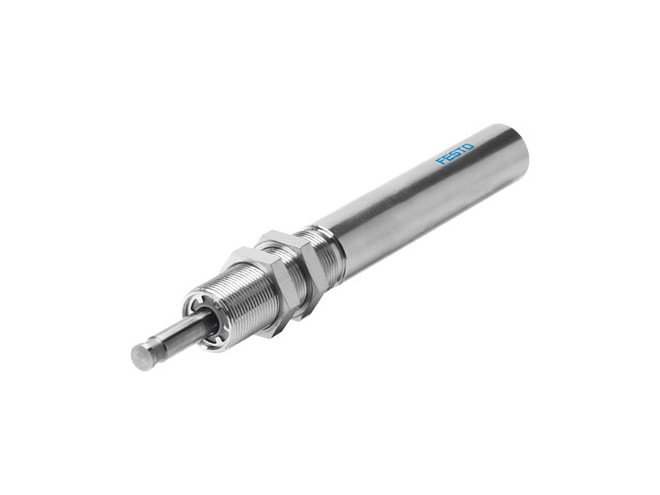

Festo DYHR Series Hydraulic Cushioning Cylinder

Constant-action cylinder with adjustable braking speed, 16 to 32mm size, and up to 60mm stroke.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our engineers at 1-802-880-3123. We’re open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Learn more about this configuration...
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • Single-acting, pushing
  • 16 to 32mm size options
  • 20 to 60mm stroke
  • Braking speed can be precisely adjusted
  • Internal hex for adjusting cushioning
  • Suitable for slow feed speeds in the range up to 0.1 m/s

The Festo DYHR Series Hydraulic Cushioning Cylinder provides constant, slow braking speeds across the entire stroke. It has an internal hex for adjusting the cushioning and a built-in compression spring designed to return the piston rod to the initial position. The DYHR cylinder can be configured with sizes ranging from 16 to 32mm and up to 60mm stroke.
