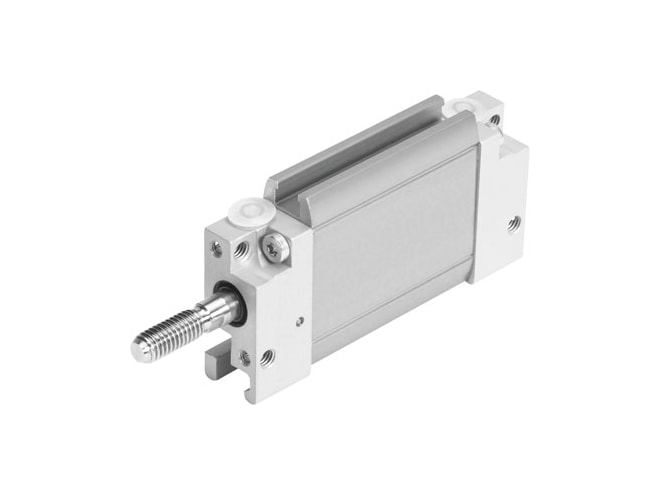

Festo DZF Series Flat Cylinder

Double-acting with an extremely flat design, 12 to 63mm non-rotating oval piston, and adjustable cushioning.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our engineers at 1-802-880-3123. We’re open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Learn more about this configuration...
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • Double-acting
  • 12 to 63mm piston size
  • 10 to 320mm stroke
  • Moment capacity up to 13.3 lbf-in
  • Magnetic piston for position sensing
  • Elastic cushioning rings/plates at both ends
  • Protection against rotation
  • Optional 248°F (120°C) temperature resistant seals

The Festo DZF Series Flat Cylinder offers high packing density with block mounting and features protection against rotation with its oval piston shape. The magnetic piston rod provides position sensing and is available in three types—single-ended, through, and hollow through—to meet varying application requirements.
