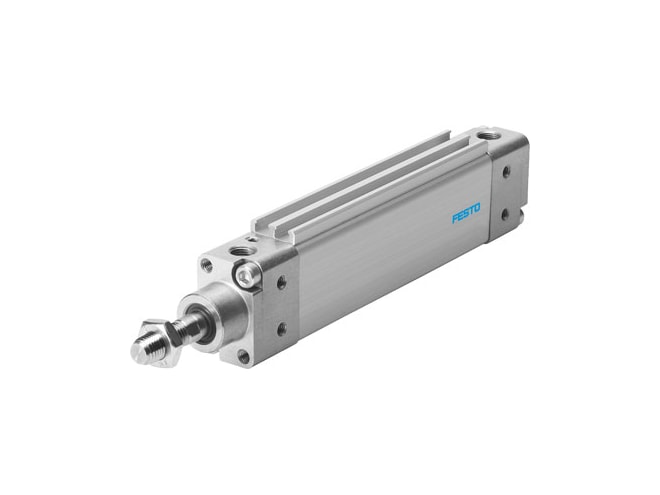

Festo DZH Series Flat Cylinder

Double-acting cylinder with adjustable cushioning and anti-rotation feature.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our engineers at 1-802-880-3123. We’re open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Learn more about this configuration...
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • 16 to 63mm piston diameters
  • 10 to 1,000mm stroke
  • Three piston rod types:
    • Standard, at one end
    • Through piston rod
    • Through hollow piston rod
  • Optional heat-resistant seals
  • Magnetic piston for position sensing
  • Adjustable pneumatic cushioning at both ends

The Festo DZH Series Flat Cylinder has a compact design ideal for high packing density with block mounting. It is a double-acting cylinder with an oval piston rod that protects the unit against rotation. The DZH series is available with piston rod variants or temperature-resistant seals to allow it to adapt to application requirements.
