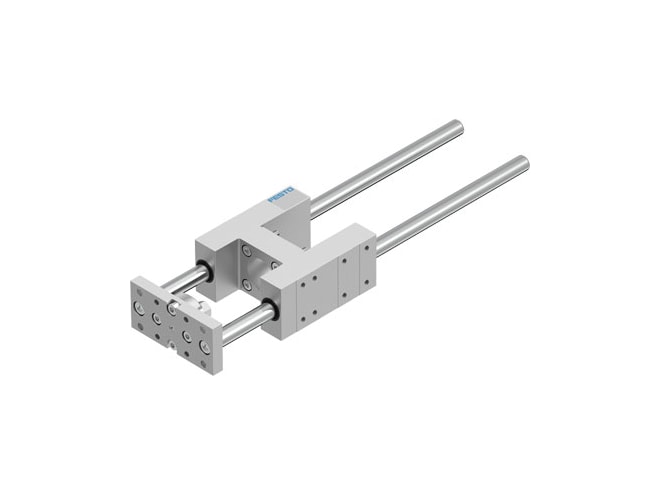

Festo EAGF-V2-KF-50-320 Guide Unit

Features

• 50 size
• 320MM stroke
• 0MIM reversing backlash theoretical
• Optional mounting position
• Recirculating ball bearing guide guide
• Guidance design
• 0 - No corrosion stress corrosion resistance class cRC
• VDMA24364-B2-L lABS (PWIS) conformity
• 1260N max. force fy
• 1600N max. force fy static
• 1260N max. force fz
• 1600N max. force fz static
• 65NM max. moment mx
• 83NM max. torque mx static
• 70NM max. moment my
• 89NM max. torque my static
• 70NM max. moment mz
• 89NM max. torque mz static
• 15N displacement force
• 3583G moving mass
• 5627G product weight
• 46MM centre of gravity at 0 mm stroke
• 4.3MM centre of gravity additional of moving mass per 10 mm
• Via female thread type of mounting
• RoHS-compliant note on materials
• Tempered steel material guide component
• Wrought aluminium alloy material housing
• Anodised material housing
• Steel material yoke plate
• -20GC ambient temperature to 80GC ambient temperature
