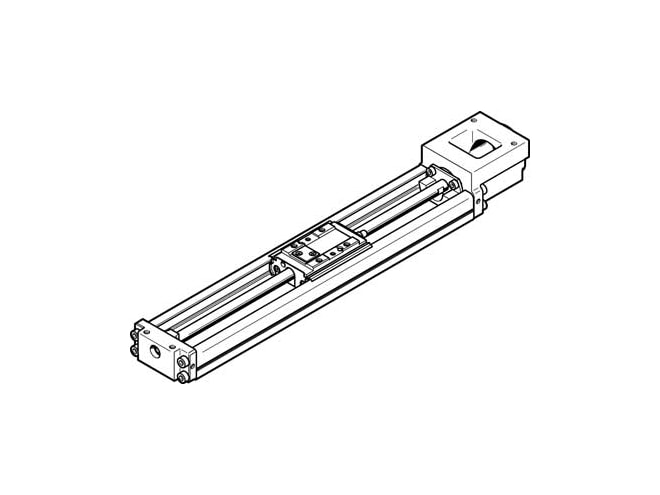

Festo EGSK Series Electrical Slide

Highly compact ball screw linear actuator with high repetition accuracy, and ball bearing guide.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our engineers at 1-802-880-3123. We’re open 8:00 am to 5:30 pm ET.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Learn more about this configuration...
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • Sizes 15, 20, 26, 33, and 46
  • 25 to 840mm stroke options
  • 1 to 20mm spindle pitch
  • Three accuracy classes available
  • Up to ±0.003mm repetition accuracy
  • Available with an additional slide
  • Short slides available for sizes 33 and 46
  • Standardized mounting interfaces

The Festo EGSK Series Electrical Slide is a ball screw linear actuator with excellent repetition accuracy and high rigidity. The EGSK series slide combines linear guide elements and the spindle nut of the ball screw in one component, thus avoiding an accumulation of manufacturing tolerances. This unit has a U-shaped steel housing that serves simultaneously as a guide rail, an electromechanical linear axis, and a ball screw drive without caged ball bearings. Custom variants of the EGSK series can be configured, including options for an additional slide, shorter slides, and high or precision accuracy.

Applications

  • Biotech, Pharma and Cosmetics
  • Laboratory automation
  • Life Sciences
  • Food and packaging
