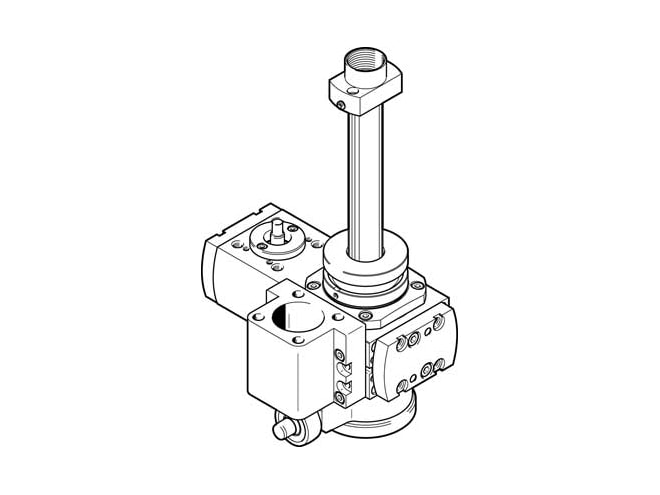

Festo EHMB Series Rotary Lifting Module

Electromechanical with toothed belt, 20 to 32mm sizes, and up to 200mm stroke.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our engineers at 1-802-880-3123. We’re open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Learn more about this configuration...
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • 20, 25, 32mm sizes
  • 100 or 200mm stroke
  • Stable bearing
  • Infinite rotation angle
  • Mountable on four sides
  • 14 to 140°F (-10 to 60°C) ambient temperature
  • Hollow axis with a large internal diameter
  • RoHS-compliant materials

The Festo EHMB Series Rotary Lifting Module combines rotary and linear motion in one compact unit. The rotation motion is transferred via a toothed belt to a hollow shaft by an electric motor, while the linear motion is generated by either a pneumatic or electric cylinder. Both movements act on the output flange and can be positioned independently. The EHMB series has a hollow axis with a large internal diameter. This allows for easy and safe routing of cables and tubing to the front unit of the rotary lifting module. The movement range can also be sensed using proximity switches at the rotary unit and the cylinder.

Applications

  • Biotech, Pharma and Cosmetics
  • Electronics industry
  • Life science
