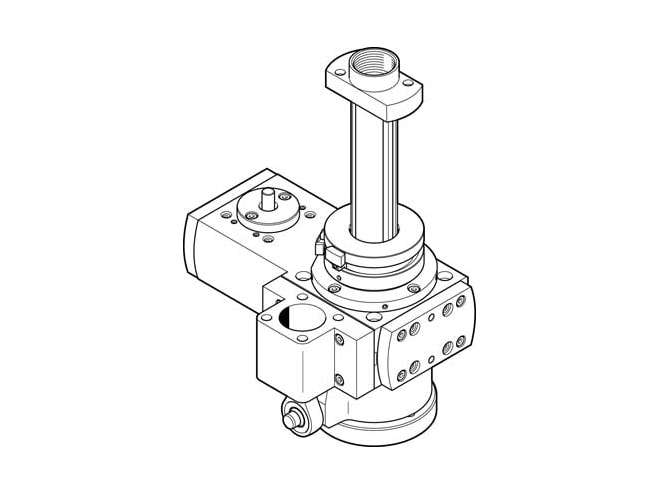

Festo EHMB-25-200 Rotary Lifting Module

Electromechanical with toothed belt, in 25mm size with 200mm stroke. View other configurations.

$5,429.49
Part Numbers
  • EHMB-25-200
  • 1095934
Highlights...

Features

  • 8MM drive pinion diameter
  • 0MM working stroke
  • 200MM working stroke
  • 25 size
  • Infinite rotation angle
  • 3MM toothed-belt pitch
  • Optional mounting position
  • Toothed belt gear unit type of gear unit
  • Electromechanical rotary/lifting module design
  • With toothed belt design
  • 4:1 gear unit ratio
  • 300PMI max. drive output speed
  • 1200PMI max. drive input speed
  • VDMA24364 zone III lABS (PWIS) conformity
  • 2.2NM max. drive torque
  • 480N max. feed force fx
  • 0.18NM frictional torque independent of load
  • 3620G product weight
  • Steel material drive shaft
  • RoHS-compliant note on materials
  • High-alloy stainless steel material drive shaft
  • Wrought aluminium alloy material cover
  • Anodised material cover
  • Wrought aluminium alloy material housing
  • Anodised material housing
  • Polychloroprene with glass fibre material toothed belt
  • -10GC ambient temperature to 60GC ambient temperature
