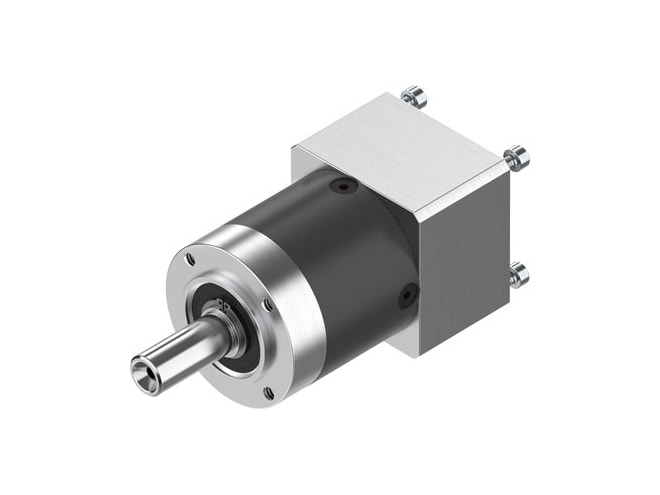

Festo EMGA-40-P-G3-EAS-40 Gear Unit

$588.81
Part Numbers
  • EMGA-40-P-G3-EAS-40
  • 2297684
Highlights...

Features

  • 40MM gear unit flange size
  • 40MM motor flange size
  • 0.25DEG torsional backlash
  • Planetary gear type of gear unit
  • 3:1 gear unit ratio
  • 18000PMI max. drive speed
  • -25GC operating temperature of gear unit
  • 90GC operating temperature of gear unit
  • VDMA24364-B2-L lABS (PWIS) conformity
  • IP54 degree of protection
  • 11NM continuous output torque
  • 0.031KGC mass moment of inertia of gear unit
  • 17.6NM max. output torque
  • 98% max. efficiency
  • 1Y16 torsional rigidity
  • 350G product weight
  • 40G gear unit interface, output shaft
  • 40P gear unit interface, drive shaft
  • RoHS-compliant note on materials
