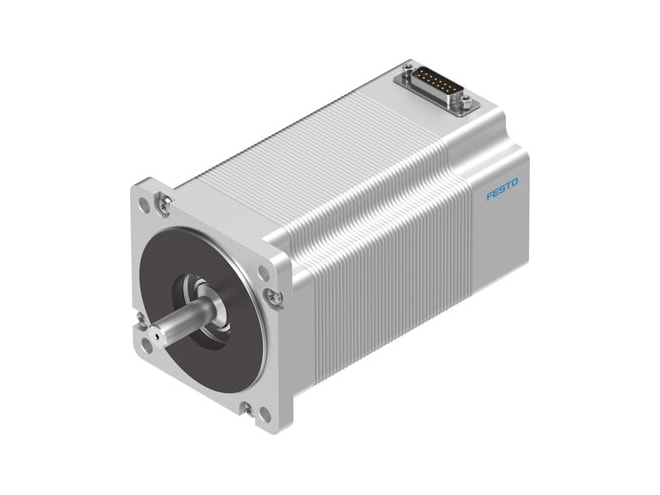

Festo EMMS-ST-87-L-S-G2 Stepper Motor

Features

• 0 - 85% relative air humidity
• IEC 60034 conforms to standard
• B insulation protection class
• B temperature class as per eN 60034-1
• S1 rating class as per eN 60034-1
• IP54 degree of protection
• Plug electrical connector system
• RoHS-compliant note on materials
• 1 - Low corrosion stress corrosion resistance class cRC
• VDMA24364-B2-L lABS (PWIS) conformity
• RCM trademark approval
• C UL us - Recognized (OL) approval
• To EU EMC Directive cE mark (see declaration of conformity)
• To UK instructions for EMC cE marking (see declaration of conformity)
• To UK RoHS instructions cE marking (see declaration of conformity)
• 48V nominal operating voltage dC
• 9.3NM motor holding torque
• 430PMI max. rotational speed
• 1.8DEG stepper angle for complete step
• ±5% stepping angle tolerance
• 9.5A nominal motor current
• 77.2YUR voltage constant, phase
• 0.23OHM phase winding resistance
• 2.7C14 phase winding inductance
• 3KGC mass moment of inertia of rotor
• 3KGC total mass moment of inertia of output
• 4200G product weight
• 65N permissible axial shaft load
• 200N permissible radial shaft load
• 2NM brake holding torque
• -10GC ambient temperature to 50GC ambient temperature
• -20GC to 70GC storage temperature
