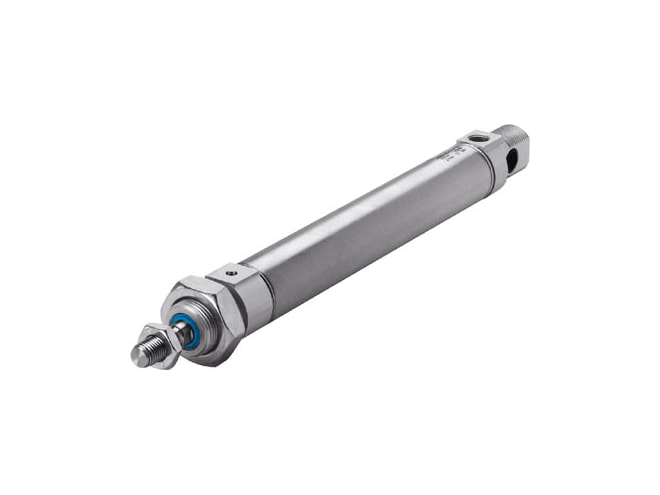

Festo ESNU Series ISO Cylinder

Round, single-acting cylinder based on ISO 6432 with self-adjusting end-position cushioning.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our engineers at 1-802-880-3123. We’re open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • Single-acting, pressing
  • 8 to 63mm piston diameter
  • 1 to 50mm stroke
  • Magnetic piston for position sensing
  • Piston rod with internal or external thread
  • Elastic cushioning rings/plates on both sides
  • Round cylinder, single-acting, pressing, based on ISO 6432

The Festo ESNU Series ISO Cylinder is a long-lasting ISO-based cylinder designed with good running performance and long service life in mind. It features a stainless steel piston rod with internal or external thread and a magnetic piston for position sensing. The ESNU series is a customizable unit with variants for special applications, including an axial supply port or custom piston rod features.

Applications

  • Food and packaging
Part Number Price Available
ESNU-12-25-P-A
Show Configuration
$58.84 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 3-4 weeks". Click here to select options
