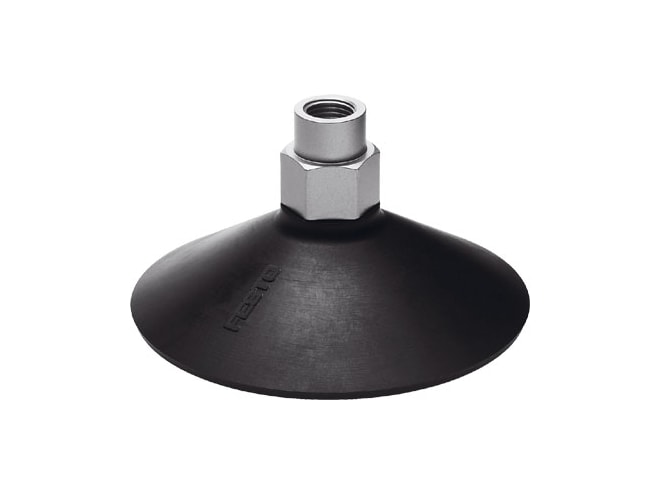

Festo ESS-100-GT-G1/4-I Suction Cup Complete

100mm diameter, Round, bell shape vacuum suction cup with Standard Polyurethane high-performance elastomer material and Threaded connection G1/4. View other configurations.

$74.01
Part Numbers
  • ESS-100-GT-G1/4-I
  • 525987
Highlights...

Features

  • 9MM height compensator for suction-cup holder
  • 135MM min. workpiece radius
  • 5.5MM nominal size
  • 100MM suction cup diameter
  • 53.9CCM suction cup volume
  • Optional mounting position
  • Round, bell-shaped design
  • 991485 symbol
  • Round deep suction cup shape
  • -0.95BAR operating pressure
  • 0BAR operating pressure
  • -0.7BAR nominal operating pressure
  • Atmospheric air based on ISO 8573-1:2010 [7:-:-] operating medium
  • 2 - Moderate corrosion stress corrosion resistance class cRC
  • VDMA24364-A1-L lABS (PWIS) conformity
  • 297N breakaway force at 70% vacuum
  • 375N holding force at nominal operating pressure
  • 11NM max. tightening torque for mounting thread
  • 183N lateral force at nominal operating pressure
  • 89.5G product weight
  • Via vacuum port type of mounting
  • G1/4 vacuum connection
  • Red-brown colour
  • 72 +/- 5 shore hardness
  • Wrought aluminium alloy material screwed plug
  • RoHS-compliant note on materials
  • Vulkollan material suction cup
  • -10GC ambient temperature to 80GC ambient temperature
