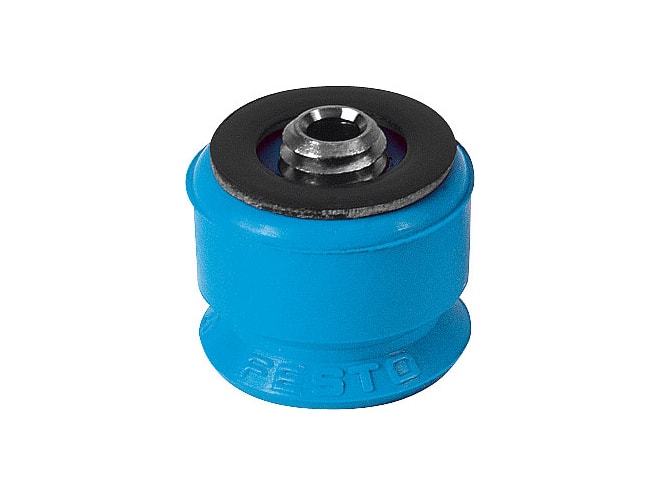

Festo ESS-10-SU Suction Cup Complete

10mm diameter, Round, standard vacuum suction cup with Standard Polyurethane material and Threaded connection M4. View other configurations.

$15.16
Part Numbers
  • ESS-10-SU
  • 189285
Highlights...

Features

  • 30MM min. workpiece radius
  • 2MM nominal size
  • 10MM suction cup diameter
  • 0.05CCM suction cup volume
  • Top position of connection
  • Optional mounting position
  • 991485 symbol
  • Size 3 correlation to suction-cup holder
  • Round, flat suction cup shape
  • -0.095KPA operating pressure
  • 0KPA operating pressure
  • -0.95BAR operating pressure
  • 0BAR operating pressure
  • -13.775PSI operating pressure
  • 0PSI operating pressure
  • -0.07KPA nominal operating pressure
  • -0.7BAR nominal operating pressure
  • -10.15PSI nominal operating pressure
  • Atmospheric air based on ISO 8573-1:2010 [7:-:-] operating medium
  • 1 - Low corrosion stress corrosion resistance class cRC
  • VDMA24364 zone III lABS (PWIS) conformity
  • See supplementary material information suitable for use with food
  • 3.9N holding force at nominal operating pressure
  • 7N lateral force at nominal operating pressure
  • 1.5G product weight
  • Via vacuum port type of mounting
  • M4 vacuum connection
  • Blue colour
  • 60 +/- 5 shore hardness
  • Nickel-plated brass material screwed plug
  • RoHS-compliant note on materials
  • PUR material suction cup
  • -20GC ambient temperature to 60GC ambient temperature
View other configurations.
