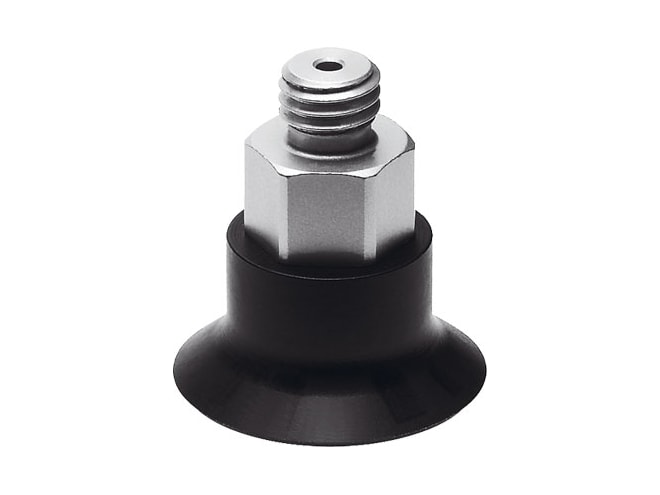

Festo ESS-30-GT-M10 Suction Cup Complete

30mm diameter, Round, bell shape vacuum suction cup with Standard Polyurethane high-performance elastomer material and Threaded connection M10. View other configurations.

$38.08
Part Numbers
  • ESS-30-GT-M10
  • 525969
Highlights...

Features

  • 3.5MM height compensator for suction-cup holder
  • 26MM min. workpiece radius
  • 2.5MM nominal size
  • 30MM suction cup diameter
  • 2.4CCM suction cup volume
  • Optional mounting position
  • 991485 symbol
  • Size 5 correlation to suction-cup holder
  • Round deep suction cup shape
  • -0.95BAR operating pressure
  • 0BAR operating pressure
  • -0.7BAR nominal operating pressure
  • Atmospheric air based on ISO 8573-1:2010 [7:-:-] operating medium
  • 2 - Moderate corrosion stress corrosion resistance class cRC
  • VDMA24364-A1-L lABS (PWIS) conformity
  • 36N holding force at nominal operating pressure
  • 13N lateral force at nominal operating pressure
  • 13G product weight
  • Via vacuum port type of mounting
  • M10 vacuum connection
  • Red-brown colour
  • 72 +/- 5 shore hardness
  • Wrought aluminium alloy material screwed plug
  • RoHS-compliant note on materials
  • Vulkollan material suction cup
  • -10GC ambient temperature to 80GC ambient temperature
