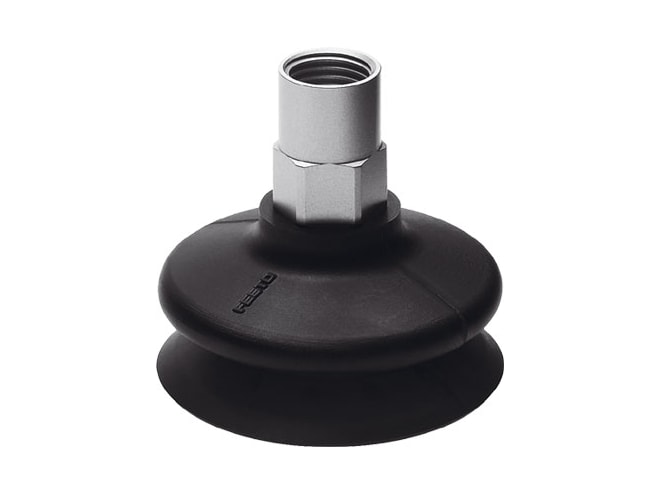

Festo ESS-50-BT-G1/4-I Suction Cup Complete

50mm diameter, Round, bellows, 1.5 convolutions vacuum suction cup with Standard Polyurethane high-performance elastomer material and Threaded connection G1/4. View other configurations.

$60.87
Part Numbers
  • ESS-50-BT-G1/4-I
  • 525995
Highlights...

Features

  • 10MM height compensator for suction-cup holder
  • 40MM min. workpiece radius
  • 2.5MM nominal size
  • 50MM suction cup diameter
  • 17.6CCM suction cup volume
  • Optional mounting position
  • 991485 symbol
  • Round bellows 1.5 convolutions suction cup shape
  • -0.95BAR operating pressure
  • 0BAR operating pressure
  • -0.7BAR nominal operating pressure
  • Atmospheric air based on ISO 8573-1:2010 [7:-:-] operating medium
  • 2 - Moderate corrosion stress corrosion resistance class cRC
  • VDMA24364-A1-L lABS (PWIS) conformity
  • 100N holding force at nominal operating pressure
  • 39N lateral force at nominal operating pressure
  • 25G product weight
  • Via vacuum port type of mounting
  • G1/4 vacuum connection
  • Red-brown colour
  • 72 +/- 5 shore hardness
  • Wrought aluminium alloy material screwed plug
  • RoHS-compliant note on materials
  • Vulkollan material suction cup
  • -10GC ambient temperature to 80GC ambient temperature
