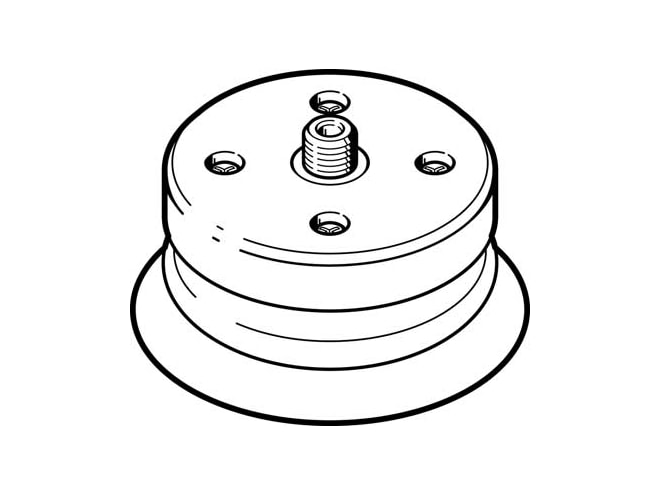

Festo ESS-80-BU Suction Cup Complete

80mm diameter, Round, bellows, 1.5 convolutions vacuum suction cup with Standard Polyurethane material and Threaded connection M10. View other configurations.

$113.92
Part Numbers
  • ESS-80-BU
  • 189395
Highlights...

Features

  • 10MM height compensator for suction cup
  • 430MM min. workpiece radius
  • 6MM nominal size
  • 80MM suction cup diameter
  • 63.9CCM suction cup volume
  • Top position of connection
  • Optional mounting position
  • 991485 symbol
  • Size 5 correlation to suction-cup holder
  • Round bellows 1.5 convolutions suction cup shape
  • -0.095KPA operating pressure
  • 0KPA operating pressure
  • -0.95BAR operating pressure
  • 0BAR operating pressure
  • -13.775PSI operating pressure
  • 0PSI operating pressure
  • -0.07KPA nominal operating pressure
  • -0.7BAR nominal operating pressure
  • -10.15PSI nominal operating pressure
  • Atmospheric air based on ISO 8573-1:2010 [7:-:-] operating medium
  • 1 - Low corrosion stress corrosion resistance class cRC
  • VDMA24364 zone III lABS (PWIS) conformity
  • See supplementary material information suitable for use with food
  • 213.6N holding force at nominal operating pressure
  • 132.5N lateral force at nominal operating pressure
  • 139G product weight
  • Via vacuum port type of mounting
  • M10 vacuum connection
  • Blue colour
  • 60 +/- 5 shore hardness
  • POM material screwed plug
  • Nickel-plated steel material screwed plug
  • Steel, galvanised and chrome-plated material screwed plug
  • RoHS-compliant note on materials
  • PUR material suction cup
  • -20GC ambient temperature to 60GC ambient temperature
