Festo EV-10/30-3 Clamping Module

$87.03
Part Numbers
  • EV-10/30-3
  • 151993
Highlights...

Features

  • 3MM stroke
  • 10x30 clamping surface
  • Optional mounting position
  • Single-acting mode of operation
  • 991208 symbol
  • 6BAR operating pressure
  • Compressed air to ISO 8573-1:2010 [7:-:-] operating medium
  • VDMA24364-B1/B2-L lABS (PWIS) conformity
  • Metals with more than 5% copper by mass are excluded from use. Exceptions are printed circuit boards, cables, electrical plug connectors and coils suitability for the production of li-ion batteries
  • 20G product weight
  • With through-hole type of mounting
  • Die-cast aluminium material housing
  • TPE-U(PU) material membrane
  • -20GC ambient temperature to 40GC ambient temperature
  • Pneumatic connection m3

Tubes

Festo PUN-H-3X0,5-NT Plastic Tubing
Festo PUN-H-3X0,5-NT Plastic Tubing

$47.50
Festo PUN-H-3X0,5-SW Plastic Tubing
Festo PUN-H-3X0,5-SW Plastic Tubing

$47.50
Festo PUN-H-3X0,5-BL Plastic Tubing
Festo PUN-H-3X0,5-BL Plastic Tubing

$47.50

Fittings

Festo QSM-M3-3 Push-in Fitting
Festo QSM-M3-3 Push-in Fitting

$45.80
Festo QSML-M3-3 Push-in L-fitting
Festo QSML-M3-3 Push-in L-fitting

$53.20
Festo QSM-M3-3-I Push-in Fitting
Festo QSM-M3-3-I Push-in Fitting

$36.90

Function Fittings

Festo GRLZ-M3-QS-3 One-way Flow Control Valve
Festo GRLZ-M3-QS-3 One-way Flow Control Valve

$37.13

Cylinder Mountings

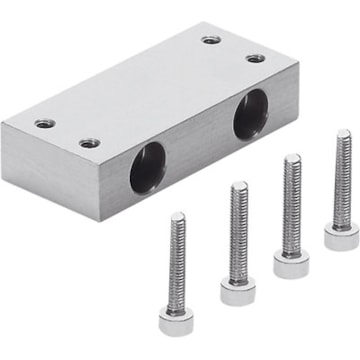

Festo HBEV-10/30 Foot Mounting
Festo HBEV-10/30 Foot Mounting

$37.39

Piston Rod Attachments

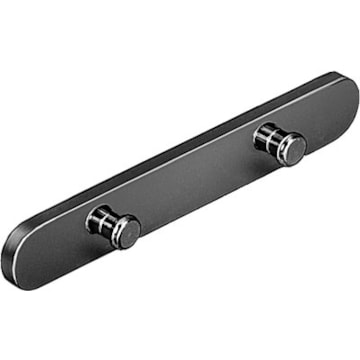

Festo EV-10/30-DP Clamping Plate
Festo EV-10/30-DP Clamping Plate

$22.44
