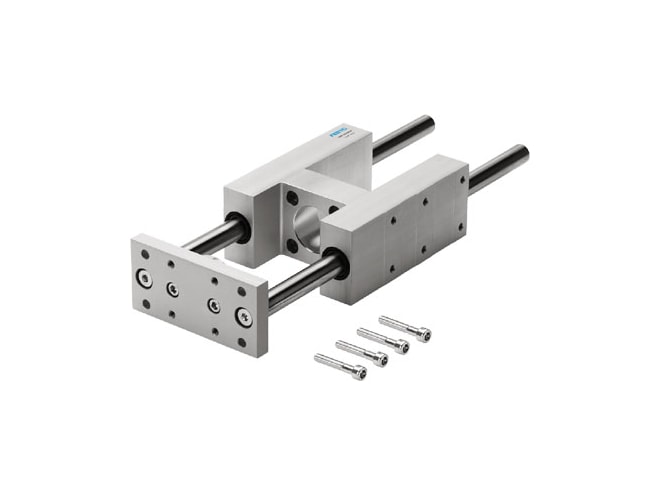

Festo FENG-80-500-KF Guide Unit

$2,363.49
Part Numbers
  • FENG-80-500-KF
  • 34528
Highlights...

Features

  • 80 size
  • 500MM stroke
  • Optional mounting position
  • Recirculating ball bearing guide guide
  • Guidance design
  • VDMA24364-B2-L lABS (PWIS) conformity
  • 2300N max. force fy
  • 3120N max. force fy static
  • 2300N max. force fz
  • 3120N max. force fz static
  • 170NM max. moment mx
  • 231NM max. torque mx static
  • 191NM max. moment my
  • 259NM max. torque my static
  • 191NM max. moment mz
  • 259NM max. torque mz static
  • 40N displacement force
  • 14280G product weight
  • Via female thread type of mounting
  • RoHS-compliant note on materials
  • Tempered steel material guide component
  • Anodised wrought aluminium alloy material housing
  • Tempered steel material yoke plate
  • -20GC ambient temperature to 80GC ambient temperature
