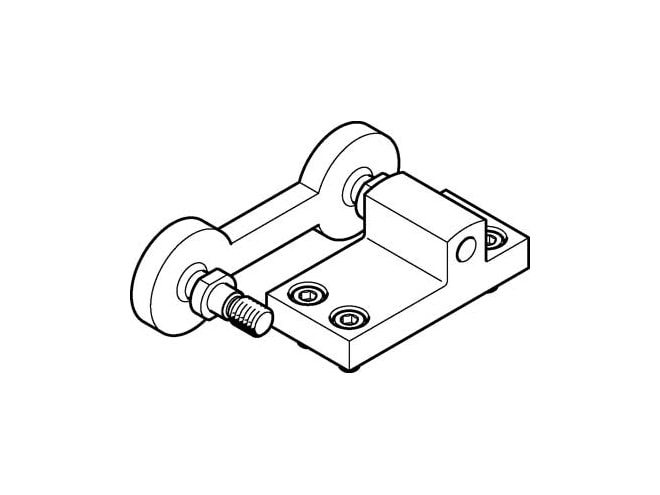

Festo FKC-18 Moment Compensator

$127.19
Part Numbers
  • FKC-18
  • 538714
Highlights...

Features

  • 18 size
  • 2.5MM radial deviation +/-
  • 1 - Low corrosion stress corrosion resistance class cRC
  • VDMA24364-B1/B2-L lABS (PWIS) conformity
  • 3000N max. permissible short-term load in force direction +/-
  • 1400N max. permissible long-term load in force direction +/-
  • 96.8G product weight
  • RoHS-compliant note on materials
  • PA-reinforced material joint
  • High-alloy steel material on ball stud
  • Wrought aluminium alloy material plate
  • -10GC ambient temperature to 60GC ambient temperature
