$116.15

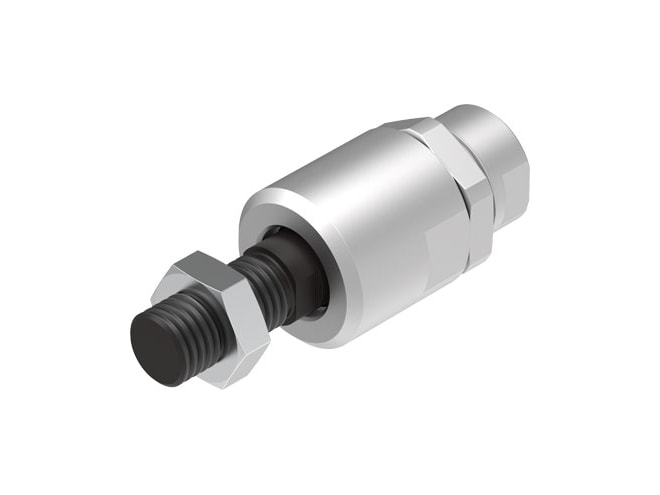

  • FK-M20X1,5
  • 6143

Overview

Features

  • M20x1.5 size
  • 2 - Moderate corrosion stress corrosion resistance class cRC
  • VDMA24364-B2-L lABS (PWIS) conformity
  • Metals with more than 1% copper by mass are excluded from use. Exceptions are printed circuit boards, cables, electrical plug connectors and coils suitability for the production of li-ion batteries
  • 720G product weight
  • RoHS-compliant note on materials
  • Steel material bushing
  • Galvanised material bushing
  • Steel material housing
  • Galvanised material housing
  • Case-hardened steel material ball bolt
  • Case-hardened steel material spherical washer
  • Steel material nut
  • Galvanised material nut
  • -40GC ambient temperature to 150GC ambient temperature
